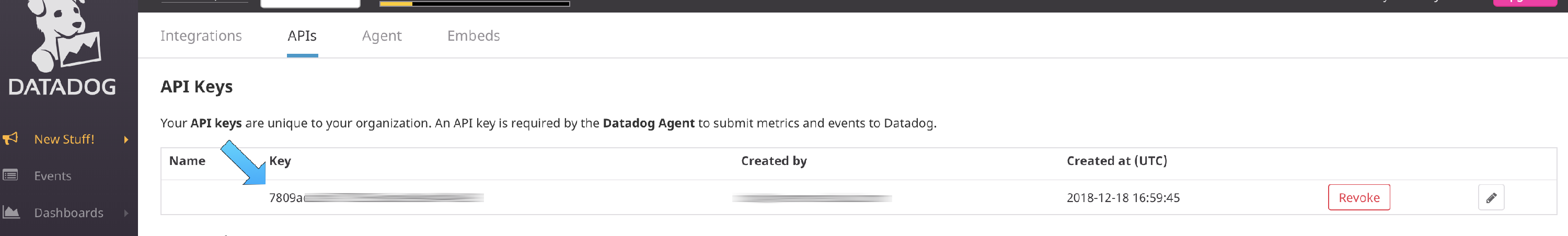

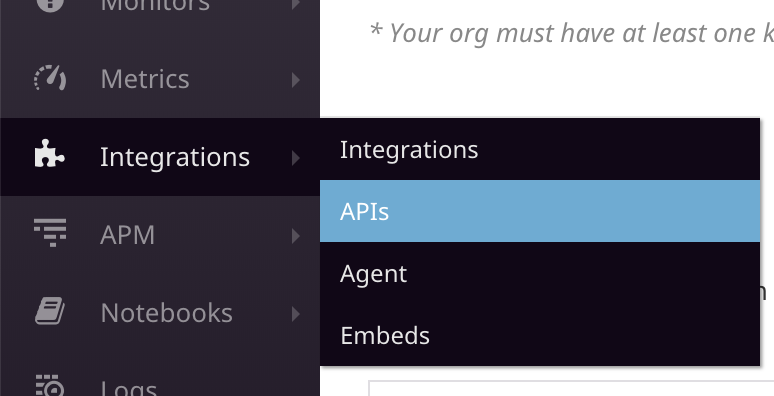

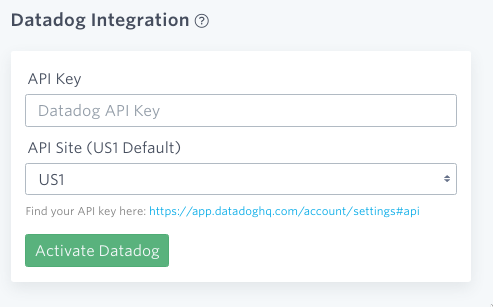

+++ title = "Using Datadog with Bonsai" weight = 132 updated = 2023-06-17 aliases = ["/docs/using-datadog-with-bonsai", "/docs/managed-search/elasticsearch-and-opensearch/cluster-management/integrations/datadog/", "/docs/cluster-management/integrations/datadog/"] [extra] weight = 2 nav_title = "Datadog" +++ Datadog is a monitoring service that allows customers to see real time metrics related to their application and infrastructure, as well as receive alerts for predefined events. Datadog offers an Elasticsearch integration for monitoring clusters, and Bonsai supports this integration. ## Getting Started 1. Log into Datadog, navigate to **Integrations > APIs** to get your current API Key {{ image(src="datadog-apis.png", alt="Datadog APIs", automatically_determine_ratio=true) }} 2. In the table of API keys, grab your current API key. {{ image(src="datadog-api-keys.png", alt="Datadog API Keys", automatically_determine_ratio=true) }} 3. Navigate to the Integrations on your cluster dashboard under **Data**. There is a section marked **Datadog Integration**. {{ image(src="datadog-integration.png", alt="Datadog integration", automatically_determine_ratio=true) }} 4. Enter your Datadog API key, select the API site, then press **Activate Datadog**. You should start to see request metrics loaded into Datadog within a few minutes. ## Adjust How Metrics Are Shown In The Datadog Dashboard **Note to Enterprise tier customers who has Grafana dashboards set up with our team:** The metrics Bonsai sends to Datadog are identical to the metrics sent to Grafana. Metrics data can be processed and rendered in a variety of ways, so it's possible that the metrics shown in Datadog differ from metrics displayed in the Bonsai dashboard or Grafana. This is because Datadog features (such as smoothing) can mask performance patterns like short-lived load spikes. Bonsai considers the metrics displayed in Grafana to be authoritative. Datadog's configuration may change on how units are reported in the graphs. The request durations are ideally shown in milliseconds, and the following steps will get you back on track: 1. In the Datadog dashboard, select **Metrics info** from the "cog" dropdown menu on a graph like so: {{ image(src="datadog-metrics-cog.png", alt="Datadog Metrics Info Cog", automatically_determine_ratio=true) }} 2. Select `*.p50` and it'll take you to the Metrics Summary search for p50. Click on the **Metric Name** then **Edit** button. {{ image(src="datadog-p50-search.jpeg", alt="Datadog p50", automatically_determine_ratio=true) }} 3. Under **Metadata**, change the **Unit** from minute to millisecond and leave **per** as `(None)`. Click save. {{ image(src="datadog-per-none.jpeg", alt="Datadog metadata units", automatically_determine_ratio=true) }} 4. Search for the other request duration times and edit their units to reflect millisecond. Once all three are edited, the graph should reflect the smallest time unit in milliseconds: {{ image(src="datadog-metrics-units.png", alt="Datadog Metrics Units", automatically_determine_ratio=true) }} If you have any questions or issues, or are not seeing metrics loading into Datadog after a long time, please reach out and let us know at [support@bonsai.io](mailto:support@bonsai.io). ## Reference: Metrics Available on Standard Subscriptions Clusters on Standard plans have access to a variety of metrics: | Metric | Type | Description | Shown As | |:-------------------------------|:------|:----------------------------------------------------------------------------|:-----------| | **bonsai.req.2xx** | gauge | Number of requests with a 2xx (successful) response code. | request | | **bonsai.req.4xx** | gauge | Number of requests with a 4xx (client error) response code. | request | | **bonsai.req.5xx** | gauge | Number of requests with a 5xx (server error) response code. | request | | **bonsai.req.max_concurrency** | gauge | Peak concurrent requests. | connection | | **bonsai.req.p50** | gauge | The median request duration. | minute | | **bonsai.req.p95** | gauge | The 95th percentile request duration. | minute | | **bonsai.req.p99** | gauge | The 99th percentile request duration. | minute | | **bonsai.req.queue_depth** | gauge | Peak queue depth (how many requests are waiting due to concurrency limits). | connection | | **bonsai.req.reads** | gauge | The number of requests which read data. | request | | **bonsai.req.rx_bytes** | gauge | The number of bytes sent to elasticsearch. | byte | | **bonsai.req.total** | gauge | The total number of requests. | request | | **bonsai.req.tx_bytes** | gauge | The number of bytes sent to client. | byte | | **bonsai.req.writes** | gauge | The total number of writes. | request | ## Reference: Metrics Available on Business / Enterprise Subscriptions Metrics are tagged on a per-cluster basis (`cluster:my-cluster-slug`), allowing segmentation between Elasticsearch instances. Users with Business and Enterprise subscriptions have access to these additional metrics: ### CPU Metrics | Metric | Data Type | |:-----------------------|:----------| | `cpu.usage_guest` | float | | `cpu.usage_guest_nice` | float | | `cpu.usage_idle` | float | | `cpu.usage_iowait` | float | | `cpu.usage_irq` | float | | `cpu.usage_nice` | float | | `cpu.usage_softirq` | float | | `cpu.usage_steal` | float | | `cpu.usage_system` | float | | `cpu.usage_user` | float | ### Disk Metrics | Metric | Data Type | |:--------------------|:----------| | `disk.free` | integer | | `disk.inodes_free` | integer | | `disk.inodes_total` | integer | | `disk.inodes_used` | integer | | `disk.total` | integer | | `disk.used` | integer | | `disk.used_percent` | float | ### Disk I/O Metrics | Metric | Data Type | |:--------------------------|:----------| | `diskio.io_time` | integer | | `diskio.iops_in_progress` | integer | | `diskio.read_bytes` | integer | | `diskio.read_time` | integer | | `diskio.reads` | integer | | `diskio.weighted_io_time` | integer | | `diskio.write_bytes` | integer | | `diskio.write_time` | integer | | `diskio.writes` | integer | ### Elasticsearch Breakers | Metric | Data Type | |:--------------------------------------------------------------------|:----------| | `elasticsearch_breakers.accounting_estimated_size_in_bytes` | float | | `elasticsearch_breakers.accounting_limit_size_in_bytes` | float | | `elasticsearch_breakers.accounting_overhead` | float | | `elasticsearch_breakers.accounting_tripped` | float | | `elasticsearch_breakers.fielddata_estimated_size_in_bytes` | float | | `elasticsearch_breakers.fielddata_limit_size_in_bytes` | float | | `elasticsearch_breakers.fielddata_overhead` | float | | `elasticsearch_breakers.fielddata_tripped` | float | | `elasticsearch_breakers.in_flight_requests_estimated_size_in_bytes` | float | | `elasticsearch_breakers.in_flight_requests_limit_size_in_bytes` | float | | `elasticsearch_breakers.in_flight_requests_overhead` | float | | `elasticsearch_breakers.in_flight_requests_tripped` | float | | `elasticsearch_breakers.parent_estimated_size_in_bytes` | float | | `elasticsearch_breakers.parent_limit_size_in_bytes` | float | | `elasticsearch_breakers.parent_overhead` | float | | `elasticsearch_breakers.parent_tripped` | float | | `elasticsearch_breakers.request_estimated_size_in_bytes` | float | | `elasticsearch_breakers.request_limit_size_in_bytes` | float | | `elasticsearch_breakers.request_overhead` | float | | `elasticsearch_breakers.request_tripped` | float | ### Elasticsearch Cluster Health | Metric | Data Type | |:----------------------------------------------------------------|:----------| | `elasticsearch_cluster_health.active_primary_shards` | integer | | `elasticsearch_cluster_health.active_shards` | integer | | `elasticsearch_cluster_health.active_shards_percent_as_number` | float | | `elasticsearch_cluster_health.initializing_shards` | integer | | `elasticsearch_cluster_health.number_of_data_nodes` | integer | | `elasticsearch_cluster_health.number_of_nodes` | integer | | `elasticsearch_cluster_health.number_of_pending_tasks` | integer | | `elasticsearch_cluster_health.relocating_shards` | integer | | `elasticsearch_cluster_health.status` | string | | `elasticsearch_cluster_health.status_code` | integer | | `elasticsearch_cluster_health.task_max_waiting_in_queue_millis` | integer | | `elasticsearch_cluster_health.timed_out` | boolean | | `elasticsearch_cluster_health.unassigned_shards` | integer | ### Elasticsearch Cluster Stats Indices | Metric | Data Type | |:-------------------------------------------------------------------------------|:----------| | `elasticsearch_clusterstats_indices.completion_size_in_bytes` | float | | `elasticsearch_clusterstats_indices.count` | float | | `elasticsearch_clusterstats_indices.docs_count` | float | | `elasticsearch_clusterstats_indices.docs_deleted` | float | | `elasticsearch_clusterstats_indices.fielddata_evictions` | float | | `elasticsearch_clusterstats_indices.fielddata_memory_size_in_bytes` | float | | `elasticsearch_clusterstats_indices.filter_cache_evictions` | float | | `elasticsearch_clusterstats_indices.filter_cache_memory_size_in_bytes` | float | | `elasticsearch_clusterstats_indices.id_cache_memory_size_in_bytes` | float | | `elasticsearch_clusterstats_indices.percolate_current` | float | | `elasticsearch_clusterstats_indices.percolate_memory_size` | string | | `elasticsearch_clusterstats_indices.percolate_memory_size_in_bytes` | float | | `elasticsearch_clusterstats_indices.percolate_queries` | float | | `elasticsearch_clusterstats_indices.percolate_time_in_millis` | float | | `elasticsearch_clusterstats_indices.percolate_total` | float | | `elasticsearch_clusterstats_indices.query_cache_cache_count` | float | | `elasticsearch_clusterstats_indices.query_cache_cache_size` | float | | `elasticsearch_clusterstats_indices.query_cache_evictions` | float | | `elasticsearch_clusterstats_indices.query_cache_hit_count` | float | | `elasticsearch_clusterstats_indices.query_cache_memory_size_in_bytes` | float | | `elasticsearch_clusterstats_indices.query_cache_miss_count` | float | | `elasticsearch_clusterstats_indices.query_cache_total_count` | float | | `elasticsearch_clusterstats_indices.segments_count` | float | | `elasticsearch_clusterstats_indices.segments_doc_values_memory_in_bytes` | float | | `elasticsearch_clusterstats_indices.segments_fixed_bit_set_memory_in_bytes` | float | | `elasticsearch_clusterstats_indices.segments_index_writer_max_memory_in_bytes` | float | | `elasticsearch_clusterstats_indices.segments_index_writer_memory_in_bytes` | float | | `elasticsearch_clusterstats_indices.segments_max_unsafe_auto_id_timestamp` | float | | `elasticsearch_clusterstats_indices.segments_memory_in_bytes` | float | | `elasticsearch_clusterstats_indices.segments_norms_memory_in_bytes` | float | | `elasticsearch_clusterstats_indices.segments_points_memory_in_bytes` | float | | `elasticsearch_clusterstats_indices.segments_stored_fields_memory_in_bytes` | float | | `elasticsearch_clusterstats_indices.segments_term_vectors_memory_in_bytes` | float | | `elasticsearch_clusterstats_indices.segments_terms_memory_in_bytes` | float | | `elasticsearch_clusterstats_indices.segments_version_map_memory_in_bytes` | float | | `elasticsearch_clusterstats_indices.shards_index_primaries_avg` | float | | `elasticsearch_clusterstats_indices.shards_index_primaries_max` | float | | `elasticsearch_clusterstats_indices.shards_index_primaries_min` | float | | `elasticsearch_clusterstats_indices.shards_index_replication_avg` | float | | `elasticsearch_clusterstats_indices.shards_index_replication_max` | float | | `elasticsearch_clusterstats_indices.shards_index_replication_min` | float | | `elasticsearch_clusterstats_indices.shards_index_shards_avg` | float | | `elasticsearch_clusterstats_indices.shards_index_shards_max` | float | | `elasticsearch_clusterstats_indices.shards_index_shards_min` | float | | `elasticsearch_clusterstats_indices.shards_primaries` | float | | `elasticsearch_clusterstats_indices.shards_replication` | float | | `elasticsearch_clusterstats_indices.shards_total` | float | | `elasticsearch_clusterstats_indices.store_size_in_bytes` | float | | `elasticsearch_clusterstats_indices.store_throttle_time_in_millis` | float | | `elasticsearch_clusterstats_nodes.count_client` | float | | `elasticsearch_clusterstats_nodes.count_coordinating_only` | float | | `elasticsearch_clusterstats_nodes.count_data` | float | | `elasticsearch_clusterstats_nodes.count_data_only` | float | | `elasticsearch_clusterstats_nodes.count_ingest` | float | | `elasticsearch_clusterstats_nodes.count_master` | float | | `elasticsearch_clusterstats_nodes.count_master_data` | float | | `elasticsearch_clusterstats_nodes.count_master_only` | float | | `elasticsearch_clusterstats_nodes.count_total` | float | | `elasticsearch_clusterstats_nodes.discovery_types_zen` | float | | `elasticsearch_clusterstats_nodes.fs_available_in_bytes` | float | | `elasticsearch_clusterstats_nodes.fs_disk_io_op` | float | | `elasticsearch_clusterstats_nodes.fs_disk_io_size_in_bytes` | float | | `elasticsearch_clusterstats_nodes.fs_disk_read_size_in_bytes` | float | | `elasticsearch_clusterstats_nodes.fs_disk_reads` | float | | `elasticsearch_clusterstats_nodes.fs_disk_write_size_in_bytes` | float | | `elasticsearch_clusterstats_nodes.fs_disk_writes` | float | | `elasticsearch_clusterstats_nodes.fs_free_in_bytes` | float | | `elasticsearch_clusterstats_nodes.fs_spins` | string | | `elasticsearch_clusterstats_nodes.fs_total_in_bytes` | float | | `elasticsearch_clusterstats_nodes.jvm_max_uptime_in_millis` | float | | `elasticsearch_clusterstats_nodes.jvm_mem_heap_max_in_bytes` | float | | `elasticsearch_clusterstats_nodes.jvm_mem_heap_used_in_bytes` | float | | `elasticsearch_clusterstats_nodes.jvm_threads` | float | | `elasticsearch_clusterstats_nodes.jvm_versions_0_bundled_jdk` | boolean | | `elasticsearch_clusterstats_nodes.jvm_versions_0_count` | float | | `elasticsearch_clusterstats_nodes.jvm_versions_0_using_bundled_jdk` | boolean | | `elasticsearch_clusterstats_nodes.jvm_versions_0_version` | string | | `elasticsearch_clusterstats_nodes.jvm_versions_0_vm_vendor` | string | | `elasticsearch_clusterstats_nodes.jvm_versions_0_vm_version` | string | | `elasticsearch_clusterstats_nodes.network_types_http_types_netty4` | float | | `elasticsearch_clusterstats_nodes.network_types_transport_types_netty4` | float | | `elasticsearch_clusterstats_nodes.os_allocated_processors` | float | | `elasticsearch_clusterstats_nodes.os_available_processors` | float | | `elasticsearch_clusterstats_nodes.os_cpu_0_cache_size_in_bytes` | float | | `elasticsearch_clusterstats_nodes.os_cpu_0_cores_per_socket` | float | | `elasticsearch_clusterstats_nodes.os_cpu_0_count` | float | | `elasticsearch_clusterstats_nodes.os_cpu_0_mhz` | float | | `elasticsearch_clusterstats_nodes.os_cpu_0_model` | string | | `elasticsearch_clusterstats_nodes.os_cpu_0_total_cores` | float | | `elasticsearch_clusterstats_nodes.os_cpu_0_total_sockets` | float | | `elasticsearch_clusterstats_nodes.os_cpu_0_vendor` | string | | `elasticsearch_clusterstats_nodes.os_mem_free_in_bytes` | float | | `elasticsearch_clusterstats_nodes.os_mem_free_percent` | float | | `elasticsearch_clusterstats_nodes.os_mem_total_in_bytes` | float | | `elasticsearch_clusterstats_nodes.os_mem_used_in_bytes` | float | | `elasticsearch_clusterstats_nodes.os_mem_used_percent` | float | | `elasticsearch_clusterstats_nodes.packaging_types_0_count` | float | | `elasticsearch_clusterstats_nodes.packaging_types_0_flavor` | string | | `elasticsearch_clusterstats_nodes.packaging_types_0_type` | string | | `elasticsearch_clusterstats_nodes.plugins_0_description` | string | | `elasticsearch_clusterstats_nodes.plugins_0_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_0_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_0_isolated` | boolean | | `elasticsearch_clusterstats_nodes.plugins_0_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_0_jvm` | boolean | | `elasticsearch_clusterstats_nodes.plugins_0_requires_keystore` | boolean | | `elasticsearch_clusterstats_nodes.plugins_0_site` | boolean | | `elasticsearch_clusterstats_nodes.plugins_0_version` | string | | `elasticsearch_clusterstats_nodes.plugins_10_description` | string | | `elasticsearch_clusterstats_nodes.plugins_10_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_10_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_10_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_10_version` | string | | `elasticsearch_clusterstats_nodes.plugins_11_description` | string | | `elasticsearch_clusterstats_nodes.plugins_11_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_11_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_11_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_11_version` | string | | `elasticsearch_clusterstats_nodes.plugins_12_description` | string | | `elasticsearch_clusterstats_nodes.plugins_12_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_12_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_12_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_12_version` | string | | `elasticsearch_clusterstats_nodes.plugins_13_description` | string | | `elasticsearch_clusterstats_nodes.plugins_13_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_13_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_13_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_13_version` | string | | `elasticsearch_clusterstats_nodes.plugins_14_description` | string | | `elasticsearch_clusterstats_nodes.plugins_14_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_14_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_14_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_14_version` | string | | `elasticsearch_clusterstats_nodes.plugins_15_description` | string | | `elasticsearch_clusterstats_nodes.plugins_15_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_15_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_15_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_15_version` | string | | `elasticsearch_clusterstats_nodes.plugins_16_description` | string | | `elasticsearch_clusterstats_nodes.plugins_16_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_16_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_16_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_16_version` | string | | `elasticsearch_clusterstats_nodes.plugins_17_description` | string | | `elasticsearch_clusterstats_nodes.plugins_17_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_17_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_17_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_17_version` | string | | `elasticsearch_clusterstats_nodes.plugins_18_description` | string | | `elasticsearch_clusterstats_nodes.plugins_18_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_18_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_18_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_18_version` | string | | `elasticsearch_clusterstats_nodes.plugins_19_description` | string | | `elasticsearch_clusterstats_nodes.plugins_19_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_19_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_19_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_19_version` | string | | `elasticsearch_clusterstats_nodes.plugins_1_description` | string | | `elasticsearch_clusterstats_nodes.plugins_1_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_1_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_1_isolated` | boolean | | `elasticsearch_clusterstats_nodes.plugins_1_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_1_jvm` | boolean | | `elasticsearch_clusterstats_nodes.plugins_1_requires_keystore` | boolean | | `elasticsearch_clusterstats_nodes.plugins_1_site` | boolean | | `elasticsearch_clusterstats_nodes.plugins_1_version` | string | | `elasticsearch_clusterstats_nodes.plugins_2_description` | string | | `elasticsearch_clusterstats_nodes.plugins_2_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_2_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_2_isolated` | boolean | | `elasticsearch_clusterstats_nodes.plugins_2_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_2_jvm` | boolean | | `elasticsearch_clusterstats_nodes.plugins_2_requires_keystore` | boolean | | `elasticsearch_clusterstats_nodes.plugins_2_site` | boolean | | `elasticsearch_clusterstats_nodes.plugins_2_version` | string | | `elasticsearch_clusterstats_nodes.plugins_3_description` | string | | `elasticsearch_clusterstats_nodes.plugins_3_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_3_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_3_isolated` | boolean | | `elasticsearch_clusterstats_nodes.plugins_3_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_3_jvm` | boolean | | `elasticsearch_clusterstats_nodes.plugins_3_requires_keystore` | boolean | | `elasticsearch_clusterstats_nodes.plugins_3_site` | boolean | | `elasticsearch_clusterstats_nodes.plugins_3_version` | string | | `elasticsearch_clusterstats_nodes.plugins_4_description` | string | | `elasticsearch_clusterstats_nodes.plugins_4_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_4_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_4_isolated` | boolean | | `elasticsearch_clusterstats_nodes.plugins_4_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_4_jvm` | boolean | | `elasticsearch_clusterstats_nodes.plugins_4_requires_keystore` | boolean | | `elasticsearch_clusterstats_nodes.plugins_4_site` | boolean | | `elasticsearch_clusterstats_nodes.plugins_4_version` | string | | `elasticsearch_clusterstats_nodes.plugins_5_description` | string | | `elasticsearch_clusterstats_nodes.plugins_5_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_5_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_5_isolated` | boolean | | `elasticsearch_clusterstats_nodes.plugins_5_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_5_jvm` | boolean | | `elasticsearch_clusterstats_nodes.plugins_5_requires_keystore` | boolean | | `elasticsearch_clusterstats_nodes.plugins_5_site` | boolean | | `elasticsearch_clusterstats_nodes.plugins_5_version` | string | | `elasticsearch_clusterstats_nodes.plugins_6_description` | string | | `elasticsearch_clusterstats_nodes.plugins_6_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_6_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_6_isolated` | boolean | | `elasticsearch_clusterstats_nodes.plugins_6_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_6_jvm` | boolean | | `elasticsearch_clusterstats_nodes.plugins_6_requires_keystore` | boolean | | `elasticsearch_clusterstats_nodes.plugins_6_site` | boolean | | `elasticsearch_clusterstats_nodes.plugins_6_version` | string | | `elasticsearch_clusterstats_nodes.plugins_7_description` | string | | `elasticsearch_clusterstats_nodes.plugins_7_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_7_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_7_isolated` | boolean | | `elasticsearch_clusterstats_nodes.plugins_7_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_7_jvm` | boolean | | `elasticsearch_clusterstats_nodes.plugins_7_requires_keystore` | boolean | | `elasticsearch_clusterstats_nodes.plugins_7_site` | boolean | | `elasticsearch_clusterstats_nodes.plugins_7_version` | string | | `elasticsearch_clusterstats_nodes.plugins_8_description` | string | | `elasticsearch_clusterstats_nodes.plugins_8_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_8_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_8_isolated` | boolean | | `elasticsearch_clusterstats_nodes.plugins_8_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_8_jvm` | boolean | | `elasticsearch_clusterstats_nodes.plugins_8_requires_keystore` | boolean | | `elasticsearch_clusterstats_nodes.plugins_8_site` | boolean | | `elasticsearch_clusterstats_nodes.plugins_8_version` | string | | `elasticsearch_clusterstats_nodes.plugins_9_description` | string | | `elasticsearch_clusterstats_nodes.plugins_9_elasticsearch_version` | string | | `elasticsearch_clusterstats_nodes.plugins_9_has_native_controller` | boolean | | `elasticsearch_clusterstats_nodes.plugins_9_java_version` | string | | `elasticsearch_clusterstats_nodes.plugins_9_version` | string | | `elasticsearch_clusterstats_nodes.process_cpu_percent` | float | | `elasticsearch_clusterstats_nodes.process_open_file_descriptors_avg` | float | | `elasticsearch_clusterstats_nodes.process_open_file_descriptors_max` | float | | `elasticsearch_clusterstats_nodes.process_open_file_descriptors_min` | float | | `elasticsearch_clusterstats_nodes.versions_0` | string | | `elasticsearch_clusterstats_nodes.versions_1` | string | ### Elasticsearch Filesystem Stats Indices | Metric | Data Type | |:-------------------------------------------------------------------------------|:----------| | `elasticsearch_fs.data_0_available_in_bytes` | float | | `elasticsearch_fs.data_0_disk_io_op` | float | | `elasticsearch_fs.data_0_disk_io_size_in_bytes` | float | | `elasticsearch_fs.data_0_disk_read_size_in_bytes` | float | | `elasticsearch_fs.data_0_disk_reads` | float | | `elasticsearch_fs.data_0_disk_write_size_in_bytes` | float | | `elasticsearch_fs.data_0_disk_writes` | float | | `elasticsearch_fs.data_0_free_in_bytes` | float | | `elasticsearch_fs.data_0_total_in_bytes` | float | | `elasticsearch_fs.io_stats_devices_0_operations` | float | | `elasticsearch_fs.io_stats_devices_0_read_kilobytes` | float | | `elasticsearch_fs.io_stats_devices_0_read_operations` | float | | `elasticsearch_fs.io_stats_devices_0_write_kilobytes` | float | | `elasticsearch_fs.io_stats_devices_0_write_operations` | float | | `elasticsearch_fs.io_stats_total_operations` | float | | `elasticsearch_fs.io_stats_total_read_kilobytes` | float | | `elasticsearch_fs.io_stats_total_read_operations` | float | | `elasticsearch_fs.io_stats_total_write_kilobytes` | float | | `elasticsearch_fs.io_stats_total_write_operations` | float | | `elasticsearch_fs.least_usage_estimate_available_in_bytes` | float | | `elasticsearch_fs.least_usage_estimate_total_in_bytes` | float | | `elasticsearch_fs.least_usage_estimate_used_disk_percent` | float | | `elasticsearch_fs.most_usage_estimate_available_in_bytes` | float | | `elasticsearch_fs.most_usage_estimate_total_in_bytes` | float | | `elasticsearch_fs.most_usage_estimate_used_disk_percent` | float | | `elasticsearch_fs.timestamp` | float | | `elasticsearch_fs.total_available_in_bytes` | float | | `elasticsearch_fs.total_disk_io_op` | float | | `elasticsearch_fs.total_disk_io_size_in_bytes` | float | | `elasticsearch_fs.total_disk_read_size_in_bytes` | float | | `elasticsearch_fs.total_disk_reads` | float | | `elasticsearch_fs.total_disk_write_size_in_bytes` | float | | `elasticsearch_fs.total_disk_writes` | float | | `elasticsearch_fs.total_free_in_bytes` | float | | `elasticsearch_fs.total_total_in_bytes` | float | ### Elasticsearch Other indices | Metric | Data Type | |:-------------------------------------------------------------------------------|:----------| | `elasticsearch_.current_open` | float | | `elasticsearch_.total_opened` | float | | `elasticsearch_indices.completion_size_in_bytes` | float | | `elasticsearch_indices.docs_count` | float | | `elasticsearch_indices.docs_deleted` | float | | `elasticsearch_indices.fielddata_evictions` | float | | `elasticsearch_indices.fielddata_memory_size_in_bytes` | float | | `elasticsearch_indices.filter_cache_evictions` | float | | `elasticsearch_indices.filter_cache_memory_size_in_bytes` | float | | `elasticsearch_indices.flush_periodic` | float | | `elasticsearch_indices.flush_total` | float | | `elasticsearch_indices.flush_total_time_in_millis` | float | | `elasticsearch_indices.get_current` | float | | `elasticsearch_indices.get_exists_time_in_millis` | float | | `elasticsearch_indices.get_exists_total` | float | | `elasticsearch_indices.get_missing_time_in_millis` | float | | `elasticsearch_indices.get_missing_total` | float | | `elasticsearch_indices.get_time_in_millis` | float | | `elasticsearch_indices.get_total` | float | | `elasticsearch_indices.id_cache_memory_size_in_bytes` | float | | `elasticsearch_indices.indexing_delete_current` | float | | `elasticsearch_indices.indexing_delete_time_in_millis` | float | | `elasticsearch_indices.indexing_delete_total` | float | | `elasticsearch_indices.indexing_index_current` | float | | `elasticsearch_indices.indexing_index_failed` | float | | `elasticsearch_indices.indexing_index_time_in_millis` | float | | `elasticsearch_indices.indexing_index_total` | float | | `elasticsearch_indices.indexing_noop_update_total` | float | | `elasticsearch_indices.indexing_throttle_time_in_millis` | float | | `elasticsearch_indices.merges_current` | float | | `elasticsearch_indices.merges_current_docs` | float | | `elasticsearch_indices.merges_current_size_in_bytes` | float | | `elasticsearch_indices.merges_total` | float | | `elasticsearch_indices.merges_total_auto_throttle_in_bytes` | float | | `elasticsearch_indices.merges_total_docs` | float | | `elasticsearch_indices.merges_total_size_in_bytes` | float | | `elasticsearch_indices.merges_total_stopped_time_in_millis` | float | | `elasticsearch_indices.merges_total_throttled_time_in_millis` | float | | `elasticsearch_indices.merges_total_time_in_millis` | float | | `elasticsearch_indices.percolate_current` | float | | `elasticsearch_indices.percolate_memory_size_in_bytes` | float | | `elasticsearch_indices.percolate_queries` | float | | `elasticsearch_indices.percolate_time_in_millis` | float | | `elasticsearch_indices.percolate_total` | float | | `elasticsearch_indices.query_cache_cache_count` | float | | `elasticsearch_indices.query_cache_cache_size` | float | | `elasticsearch_indices.query_cache_evictions` | float | | `elasticsearch_indices.query_cache_hit_count` | float | | `elasticsearch_indices.query_cache_memory_size_in_bytes` | float | | `elasticsearch_indices.query_cache_miss_count` | float | | `elasticsearch_indices.query_cache_total_count` | float | | `elasticsearch_indices.recovery_current_as_source` | float | | `elasticsearch_indices.recovery_current_as_target` | float | | `elasticsearch_indices.recovery_throttle_time_in_millis` | float | | `elasticsearch_indices.refresh_external_total` | float | | `elasticsearch_indices.refresh_external_total_time_in_millis` | float | | `elasticsearch_indices.refresh_listeners` | float | | `elasticsearch_indices.refresh_total` | float | | `elasticsearch_indices.refresh_total_time_in_millis` | float | | `elasticsearch_indices.request_cache_evictions` | float | | `elasticsearch_indices.request_cache_hit_count` | float | | `elasticsearch_indices.request_cache_memory_size_in_bytes` | float | | `elasticsearch_indices.request_cache_miss_count` | float | | `elasticsearch_indices.search_fetch_current` | float | | `elasticsearch_indices.search_fetch_time_in_millis` | float | | `elasticsearch_indices.search_fetch_total` | float | | `elasticsearch_indices.search_open_contexts` | float | | `elasticsearch_indices.search_query_current` | float | | `elasticsearch_indices.search_query_time_in_millis` | float | | `elasticsearch_indices.search_query_total` | float | | `elasticsearch_indices.search_scroll_current` | float | | `elasticsearch_indices.search_scroll_time_in_millis` | float | | `elasticsearch_indices.search_scroll_total` | float | | `elasticsearch_indices.search_suggest_current` | float | | `elasticsearch_indices.search_suggest_time_in_millis` | float | | `elasticsearch_indices.search_suggest_total` | float | | `elasticsearch_indices.segments_count` | float | | `elasticsearch_indices.segments_doc_values_memory_in_bytes` | float | | `elasticsearch_indices.segments_fixed_bit_set_memory_in_bytes` | float | | `elasticsearch_indices.segments_index_writer_max_memory_in_bytes` | float | | `elasticsearch_indices.segments_index_writer_memory_in_bytes` | float | | `elasticsearch_indices.segments_max_unsafe_auto_id_timestamp` | float | | `elasticsearch_indices.segments_memory_in_bytes` | float | | `elasticsearch_indices.segments_norms_memory_in_bytes` | float | | `elasticsearch_indices.segments_points_memory_in_bytes` | float | | `elasticsearch_indices.segments_stored_fields_memory_in_bytes` | float | | `elasticsearch_indices.segments_term_vectors_memory_in_bytes` | float | | `elasticsearch_indices.segments_terms_memory_in_bytes` | float | | `elasticsearch_indices.segments_version_map_memory_in_bytes` | float | | `elasticsearch_indices.store_size_in_bytes` | float | | `elasticsearch_indices.store_throttle_time_in_millis` | float | | `elasticsearch_indices.suggest_current` | float | | `elasticsearch_indices.suggest_time_in_millis` | float | | `elasticsearch_indices.suggest_total` | float | | `elasticsearch_indices.translog_earliest_last_modified_age` | float | | `elasticsearch_indices.translog_operations` | float | | `elasticsearch_indices.translog_size_in_bytes` | float | | `elasticsearch_indices.translog_uncommitted_operations` | float | | `elasticsearch_indices.translog_uncommitted_size_in_bytes` | float | | `elasticsearch_indices.warmer_current` | float | | `elasticsearch_indices.warmer_total` | float | | `elasticsearch_indices.warmer_total_time_in_millis` | float | | `elasticsearch_jvm.buffer_pools_direct_count` | float | | `elasticsearch_jvm.buffer_pools_direct_total_capacity_in_bytes` | float | | `elasticsearch_jvm.buffer_pools_direct_used_in_bytes` | float | | `elasticsearch_jvm.buffer_pools_mapped_count` | float | | `elasticsearch_jvm.buffer_pools_mapped_total_capacity_in_bytes` | float | | `elasticsearch_jvm.buffer_pools_mapped_used_in_bytes` | float | | `elasticsearch_jvm.classes_current_loaded_count` | float | | `elasticsearch_jvm.classes_total_loaded_count` | float | | `elasticsearch_jvm.classes_total_unloaded_count` | float | | `elasticsearch_jvm.gc_collectors_old_collection_count` | float | | `elasticsearch_jvm.gc_collectors_old_collection_time_in_millis` | float | | `elasticsearch_jvm.gc_collectors_young_collection_count` | float | | `elasticsearch_jvm.gc_collectors_young_collection_time_in_millis` | float | | `elasticsearch_jvm.mem_heap_committed_in_bytes` | float | | `elasticsearch_jvm.mem_heap_max_in_bytes` | float | | `elasticsearch_jvm.mem_heap_used_in_bytes` | float | | `elasticsearch_jvm.mem_heap_used_percent` | float | | `elasticsearch_jvm.mem_non_heap_committed_in_bytes` | float | | `elasticsearch_jvm.mem_non_heap_used_in_bytes` | float | | `elasticsearch_jvm.mem_pools_old_max_in_bytes` | float | | `elasticsearch_jvm.mem_pools_old_peak_max_in_bytes` | float | | `elasticsearch_jvm.mem_pools_old_peak_used_in_bytes` | float | | `elasticsearch_jvm.mem_pools_old_used_in_bytes` | float | | `elasticsearch_jvm.mem_pools_survivor_max_in_bytes` | float | | `elasticsearch_jvm.mem_pools_survivor_peak_max_in_bytes` | float | | `elasticsearch_jvm.mem_pools_survivor_peak_used_in_bytes` | float | | `elasticsearch_jvm.mem_pools_survivor_used_in_bytes` | float | | `elasticsearch_jvm.mem_pools_young_max_in_bytes` | float | | `elasticsearch_jvm.mem_pools_young_peak_max_in_bytes` | float | | `elasticsearch_jvm.mem_pools_young_peak_used_in_bytes` | float | | `elasticsearch_jvm.mem_pools_young_used_in_bytes` | float | | `elasticsearch_jvm.threads_count` | float | | `elasticsearch_jvm.threads_peak_count` | float | | `elasticsearch_jvm.timestamp` | float | | `elasticsearch_jvm.uptime_in_millis` | float | | `elasticsearch_os.cgroup_cpu_cfs_period_micros` | float | | `elasticsearch_os.cgroup_cpu_cfs_quota_micros` | float | | `elasticsearch_os.cgroup_cpu_stat_number_of_elapsed_periods` | float | | `elasticsearch_os.cgroup_cpu_stat_number_of_times_throttled` | float | | `elasticsearch_os.cgroup_cpu_stat_time_throttled_nanos` | float | | `elasticsearch_os.cgroup_cpuacct_usage_nanos` | float | | `elasticsearch_os.cpu_idle` | float | | `elasticsearch_os.cpu_load_average_15m` | float | | `elasticsearch_os.cpu_load_average_1m` | float | | `elasticsearch_os.cpu_load_average_5m` | float | | `elasticsearch_os.cpu_percent` | float | | `elasticsearch_os.cpu_stolen` | float | | `elasticsearch_os.cpu_sys` | float | | `elasticsearch_os.cpu_usage` | float | | `elasticsearch_os.cpu_user` | float | | `elasticsearch_os.load_average` | float | | `elasticsearch_os.load_average_0` | float | | `elasticsearch_os.load_average_1` | float | | `elasticsearch_os.load_average_2` | float | | `elasticsearch_os.mem_actual_free_in_bytes` | float | | `elasticsearch_os.mem_actual_used_in_bytes` | float | | `elasticsearch_os.mem_free_in_bytes` | float | | `elasticsearch_os.mem_free_percent` | float | | `elasticsearch_os.mem_total_in_bytes` | float | | `elasticsearch_os.mem_used_in_bytes` | float | | `elasticsearch_os.mem_used_percent` | float | | `elasticsearch_os.swap_free_in_bytes` | float | | `elasticsearch_os.swap_total_in_bytes` | float | | `elasticsearch_os.swap_used_in_bytes` | float | | `elasticsearch_os.timestamp` | float | | `elasticsearch_os.uptime_in_millis` | float | | `elasticsearch_process.cpu_percent` | float | | `elasticsearch_process.cpu_sys_in_millis` | float | | `elasticsearch_process.cpu_total_in_millis` | float | | `elasticsearch_process.cpu_user_in_millis` | float | | `elasticsearch_process.max_file_descriptors` | float | | `elasticsearch_process.mem_resident_in_bytes` | float | | `elasticsearch_process.mem_share_in_bytes` | float | | `elasticsearch_process.mem_total_virtual_in_bytes` | float | | `elasticsearch_process.open_file_descriptors` | float | | `elasticsearch_process.timestamp` | float | | `elasticsearch_thread_pool.analyze_active` | float | | `elasticsearch_thread_pool.analyze_completed` | float | | `elasticsearch_thread_pool.analyze_largest` | float | | `elasticsearch_thread_pool.analyze_queue` | float | | `elasticsearch_thread_pool.analyze_rejected` | float | | `elasticsearch_thread_pool.analyze_threads` | float | | `elasticsearch_thread_pool.bench_active` | float | | `elasticsearch_thread_pool.bench_completed` | float | | `elasticsearch_thread_pool.bench_largest` | float | | `elasticsearch_thread_pool.bench_queue` | float | | `elasticsearch_thread_pool.bench_rejected` | float | | `elasticsearch_thread_pool.bench_threads` | float | | `elasticsearch_thread_pool.bulk_active` | float | | `elasticsearch_thread_pool.bulk_completed` | float | | `elasticsearch_thread_pool.bulk_largest` | float | | `elasticsearch_thread_pool.bulk_queue` | float | | `elasticsearch_thread_pool.bulk_rejected` | float | | `elasticsearch_thread_pool.bulk_threads` | float | | `elasticsearch_thread_pool.fetch_shard_started_active` | float | | `elasticsearch_thread_pool.fetch_shard_started_completed` | float | | `elasticsearch_thread_pool.fetch_shard_started_largest` | float | | `elasticsearch_thread_pool.fetch_shard_started_queue` | float | | `elasticsearch_thread_pool.fetch_shard_started_rejected` | float | | `elasticsearch_thread_pool.fetch_shard_started_threads` | float | | `elasticsearch_thread_pool.fetch_shard_store_active` | float | | `elasticsearch_thread_pool.fetch_shard_store_completed` | float | | `elasticsearch_thread_pool.fetch_shard_store_largest` | float | | `elasticsearch_thread_pool.fetch_shard_store_queue` | float | | `elasticsearch_thread_pool.fetch_shard_store_rejected` | float | | `elasticsearch_thread_pool.fetch_shard_store_threads` | float | | `elasticsearch_thread_pool.flush_active` | float | | `elasticsearch_thread_pool.flush_completed` | float | | `elasticsearch_thread_pool.flush_largest` | float | | `elasticsearch_thread_pool.flush_queue` | float | | `elasticsearch_thread_pool.flush_rejected` | float | | `elasticsearch_thread_pool.flush_threads` | float | | `elasticsearch_thread_pool.force_merge_active` | float | | `elasticsearch_thread_pool.force_merge_completed` | float | | `elasticsearch_thread_pool.force_merge_largest` | float | | `elasticsearch_thread_pool.force_merge_queue` | float | | `elasticsearch_thread_pool.force_merge_rejected` | float | | `elasticsearch_thread_pool.force_merge_threads` | float | | `elasticsearch_thread_pool.generic_active` | float | | `elasticsearch_thread_pool.generic_completed` | float | | `elasticsearch_thread_pool.generic_largest` | float | | `elasticsearch_thread_pool.generic_queue` | float | | `elasticsearch_thread_pool.generic_rejected` | float | | `elasticsearch_thread_pool.generic_threads` | float | | `elasticsearch_thread_pool.get_active` | float | | `elasticsearch_thread_pool.get_completed` | float | | `elasticsearch_thread_pool.get_largest` | float | | `elasticsearch_thread_pool.get_queue` | float | | `elasticsearch_thread_pool.get_rejected` | float | | `elasticsearch_thread_pool.get_threads` | float | | `elasticsearch_thread_pool.index_active` | float | | `elasticsearch_thread_pool.index_completed` | float | | `elasticsearch_thread_pool.index_largest` | float | | `elasticsearch_thread_pool.index_queue` | float | | `elasticsearch_thread_pool.index_rejected` | float | | `elasticsearch_thread_pool.index_threads` | float | | `elasticsearch_thread_pool.listener_active` | float | | `elasticsearch_thread_pool.listener_completed` | float | | `elasticsearch_thread_pool.listener_largest` | float | | `elasticsearch_thread_pool.listener_queue` | float | | `elasticsearch_thread_pool.listener_rejected` | float | | `elasticsearch_thread_pool.listener_threads` | float | | `elasticsearch_thread_pool.management_active` | float | | `elasticsearch_thread_pool.management_completed` | float | | `elasticsearch_thread_pool.management_largest` | float | | `elasticsearch_thread_pool.management_queue` | float | | `elasticsearch_thread_pool.management_rejected` | float | | `elasticsearch_thread_pool.management_threads` | float | | `elasticsearch_thread_pool.merge_active` | float | | `elasticsearch_thread_pool.merge_completed` | float | | `elasticsearch_thread_pool.merge_largest` | float | | `elasticsearch_thread_pool.merge_queue` | float | | `elasticsearch_thread_pool.merge_rejected` | float | | `elasticsearch_thread_pool.merge_threads` | float | | `elasticsearch_thread_pool.optimize_active` | float | | `elasticsearch_thread_pool.optimize_completed` | float | | `elasticsearch_thread_pool.optimize_largest` | float | | `elasticsearch_thread_pool.optimize_queue` | float | | `elasticsearch_thread_pool.optimize_rejected` | float | | `elasticsearch_thread_pool.optimize_threads` | float | | `elasticsearch_thread_pool.percolate_active` | float | | `elasticsearch_thread_pool.percolate_completed` | float | | `elasticsearch_thread_pool.percolate_largest` | float | | `elasticsearch_thread_pool.percolate_queue` | float | | `elasticsearch_thread_pool.percolate_rejected` | float | | `elasticsearch_thread_pool.percolate_threads` | float | | `elasticsearch_thread_pool.refresh_active` | float | | `elasticsearch_thread_pool.refresh_completed` | float | | `elasticsearch_thread_pool.refresh_largest` | float | | `elasticsearch_thread_pool.refresh_queue` | float | | `elasticsearch_thread_pool.refresh_rejected` | float | | `elasticsearch_thread_pool.refresh_threads` | float | | `elasticsearch_thread_pool.search_active` | float | | `elasticsearch_thread_pool.search_completed` | float | | `elasticsearch_thread_pool.search_largest` | float | | `elasticsearch_thread_pool.search_queue` | float | | `elasticsearch_thread_pool.search_rejected` | float | | `elasticsearch_thread_pool.search_threads` | float | | `elasticsearch_thread_pool.search_throttled_active` | float | | `elasticsearch_thread_pool.search_throttled_completed` | float | | `elasticsearch_thread_pool.search_throttled_largest` | float | | `elasticsearch_thread_pool.search_throttled_queue` | float | | `elasticsearch_thread_pool.search_throttled_rejected` | float | | `elasticsearch_thread_pool.search_throttled_threads` | float | | `elasticsearch_thread_pool.snapshot_active` | float | | `elasticsearch_thread_pool.snapshot_completed` | float | | `elasticsearch_thread_pool.snapshot_largest` | float | | `elasticsearch_thread_pool.snapshot_queue` | float | | `elasticsearch_thread_pool.snapshot_rejected` | float | | `elasticsearch_thread_pool.snapshot_threads` | float | | `elasticsearch_thread_pool.suggest_active` | float | | `elasticsearch_thread_pool.suggest_completed` | float | | `elasticsearch_thread_pool.suggest_largest` | float | | `elasticsearch_thread_pool.suggest_queue` | float | | `elasticsearch_thread_pool.suggest_rejected` | float | | `elasticsearch_thread_pool.suggest_threads` | float | | `elasticsearch_thread_pool.warmer_active` | float | | `elasticsearch_thread_pool.warmer_completed` | float | | `elasticsearch_thread_pool.warmer_largest` | float | | `elasticsearch_thread_pool.warmer_queue` | float | | `elasticsearch_thread_pool.warmer_rejected` | float | | `elasticsearch_thread_pool.warmer_threads` | float | | `elasticsearch_thread_pool.write_active` | float | | `elasticsearch_thread_pool.write_completed` | float | | `elasticsearch_thread_pool.write_largest` | float | | `elasticsearch_thread_pool.write_queue` | float | | `elasticsearch_thread_pool.write_rejected` | float | | `elasticsearch_thread_pool.write_threads` | float | | `elasticsearch_transport.rx_count` | float | | `elasticsearch_transport.rx_size_in_bytes` | float | | `elasticsearch_transport.server_open` | float | | `elasticsearch_transport.tx_count` | float | | `elasticsearch_transport.tx_size_in_bytes` | float | ### Other indices | Metric | Data Type | |:-------------------------------------------------------------------------------|:----------| | `haproxy.active_servers` | integer | | `haproxy.addr` | string | | `haproxy.backup_servers` | integer | | `haproxy.bin` | integer | | `haproxy.bout` | integer | | `haproxy.cache_hits` | integer | | `haproxy.cache_lookups` | integer | | `haproxy.check_code` | integer | | `haproxy.check_duration` | integer | | `haproxy.check_fall` | integer | | `haproxy.check_health` | integer | | `haproxy.check_rise` | integer | | `haproxy.check_status` | string | | `haproxy.chkdown` | integer | | `haproxy.chkfail` | integer | | `haproxy.cli_abort` | integer | | `haproxy.comp_byp` | integer | | `haproxy.comp_in` | integer | | `haproxy.comp_out` | integer | | `haproxy.comp_rsp` | integer | | `haproxy.conn_rate` | integer | | `haproxy.conn_rate_max` | integer | | `haproxy.conn_tot` | integer | | `haproxy.connect` | integer | | `haproxy.ctime` | integer | | `haproxy.dcon` | integer | | `haproxy.downtime` | integer | | `haproxy.dreq` | integer | | `haproxy.dresp` | integer | | `haproxy.dses` | integer | | `haproxy.econ` | integer | | `haproxy.ereq` | integer | | `haproxy.eresp` | integer | | `haproxy.hanafail` | integer | | `haproxy.http_response`.1xx | integer | | `haproxy.http_response`.2xx | integer | | `haproxy.http_response`.3xx | integer | | `haproxy.http_response`.4xx | integer | | `haproxy.http_response`.5xx | integer | | `haproxy.http_response`.other | integer | | `haproxy.iid` | integer | | `haproxy.intercepted` | integer | | `haproxy.last_chk` | string | | `haproxy.lastchg` | integer | | `haproxy.lastsess` | integer | | `haproxy.lbtot` | integer | | `haproxy.mode` | string | | `haproxy.pid` | integer | | `haproxy.qcur` | integer | | `haproxy.qmax` | integer | | `haproxy.qtime` | integer | | `haproxy.rate` | integer | | `haproxy.rate_lim` | integer | | `haproxy.rate_max` | integer | | `haproxy.req_rate` | integer | | `haproxy.req_rate_max` | integer | | `haproxy.req_tot` | integer | | `haproxy.reuse` | integer | | `haproxy.rtime` | integer | | `haproxy.scur` | integer | | `haproxy.sid` | integer | | `haproxy.slim` | integer | | `haproxy.smax` | integer | | `haproxy.srv_abort` | integer | | `haproxy.status` | string | | `haproxy.stot` | integer | | `haproxy.ttime` | integer | | `haproxy.weight` | integer | | `haproxy.wredis` | integer | | `haproxy.wretr` | integer | | `haproxy.wrew` | integer | | `kernel.boot_time` | integer | | `kernel.context_switches` | integer | | `kernel.entropy_avail` | integer | | `kernel.interrupts` | integer | | `kernel.processes_forked` | integer | | `mem.active` | integer | | `mem.available` | integer | | `mem.available_percent` | float | | `mem.buffered` | integer | | `mem.cached` | integer | | `mem.commit_limit` | integer | | `mem.committed_as` | integer | | `mem.dirty` | integer | | `mem.free` | integer | | `mem.high_free` | integer | | `mem.high_total` | integer | | `mem.huge_page_size` | integer | | `mem.huge_pages_free` | integer | | `mem.huge_pages_total` | integer | | `mem.inactive` | integer | | `mem.low_free` | integer | | `mem.low_total` | integer | | `mem.mapped` | integer | | `mem.page_tables` | integer | | `mem.shared` | integer | | `mem.slab` | integer | | `mem.swap_cached` | integer | | `mem.swap_free` | integer | | `mem.swap_total` | integer | | `mem.total` | integer | | `mem.used` | integer | | `mem.used_percent` | float | | `mem.vmalloc_chunk` | integer | | `mem.vmalloc_total` | integer | | `mem.vmalloc_used` | integer | | `mem.wired` | integer | | `mem.write_back` | integer | | `mem.write_back_tmp` | integer | | `net.bytes_recv` | integer | | `net.bytes_sent` | integer | | `net.drop_in` | integer | | `net.drop_out` | integer | | `net.err_in` | integer | | `net.err_out` | integer | | `net.icmp_inaddrmaskreps` | integer | | `net.icmp_inaddrmasks` | integer | | `net.icmp_incsumerrors` | integer | | `net.icmp_indestunreachs` | integer | | `net.icmp_inechoreps` | integer | | `net.icmp_inechos` | integer | | `net.icmp_inerrors` | integer | | `net.icmp_inmsgs` | integer | | `net.icmp_inparmprobs` | integer | | `net.icmp_inredirects` | integer | | `net.icmp_insrcquenchs` | integer | | `net.icmp_intimeexcds` | integer | | `net.icmp_intimestampreps` | integer | | `net.icmp_intimestamps` | integer | | `net.icmp_outaddrmaskreps` | integer | | `net.icmp_outaddrmasks` | integer | | `net.icmp_outdestunreachs` | integer | | `net.icmp_outechoreps` | integer | | `net.icmp_outechos` | integer | | `net.icmp_outerrors` | integer | | `net.icmp_outmsgs` | integer | | `net.icmp_outparmprobs` | integer | | `net.icmp_outredirects` | integer | | `net.icmp_outsrcquenchs` | integer | | `net.icmp_outtimeexcds` | integer | | `net.icmp_outtimestampreps` | integer | | `net.icmp_outtimestamps` | integer | | `net.icmpmsg_intype0` | integer | | `net.icmpmsg_intype11` | integer | | `net.icmpmsg_intype3` | integer | | `net.icmpmsg_intype4` | integer | | `net.icmpmsg_intype5` | integer | | `net.icmpmsg_intype8` | integer | | `net.icmpmsg_outtype0` | integer | | `net.icmpmsg_outtype3` | integer | | `net.icmpmsg_outtype8` | integer | | `net.ip_defaultttl` | integer | | `net.ip_forwarding` | integer | | `net.ip_forwdatagrams` | integer | | `net.ip_fragcreates` | integer | | `net.ip_fragfails` | integer | | `net.ip_fragoks` | integer | | `net.ip_inaddrerrors` | integer | | `net.ip_indelivers` | integer | | `net.ip_indiscards` | integer | | `net.ip_inhdrerrors` | integer | | `net.ip_inreceives` | integer | | `net.ip_inunknownprotos` | integer | | `net.ip_outdiscards` | integer | | `net.ip_outnoroutes` | integer | | `net.ip_outrequests` | integer | | `net.ip_reasmfails` | integer | | `net.ip_reasmoks` | integer | | `net.ip_reasmreqds` | integer | | `net.ip_reasmtimeout` | integer | | `net.packets_recv` | integer | | `net.packets_sent` | integer | | `net.tcp_activeopens` | integer | | `net.tcp_attemptfails` | integer | | `net.tcp_currestab` | integer | | `net.tcp_estabresets` | integer | | `net.tcp_incsumerrors` | integer | | `net.tcp_inerrs` | integer | | `net.tcp_insegs` | integer | | `net.tcp_maxconn` | integer | | `net.tcp_outrsts` | integer | | `net.tcp_outsegs` | integer | | `net.tcp_passiveopens` | integer | | `net.tcp_retranssegs` | integer | | `net.tcp_rtoalgorithm` | integer | | `net.tcp_rtomax` | integer | | `net.tcp_rtomin` | integer | | `net.udp_ignoredmulti` | integer | | `net.udp_incsumerrors` | integer | | `net.udp_indatagrams` | integer | | `net.udp_inerrors` | integer | | `net.udp_noports` | integer | | `net.udp_outdatagrams` | integer | | `net.udp_rcvbuferrors` | integer | | `net.udp_sndbuferrors` | integer | | `net.udplite_ignoredmulti` | integer | | `net.udplite_incsumerrors` | integer | | `net.udplite_indatagrams` | integer | | `net.udplite_inerrors` | integer | | `net.udplite_noports` | integer | | `net.udplite_outdatagrams` | integer | | `net.udplite_rcvbuferrors` | integer | | `net.udplite_sndbuferrors` | integer | | `system.load1` | float | | `system.load15` | float | | `system.load5` | float | | `system.n_cpus` | integer | | `system.n_users` | integer | | `system.uptime` | integer | | `system.uptime_format` | string |
