Bonsai Documentation • Using Datadog with Bonsai

Datadog is a monitoring service that allows customers to see real time metrics related to their application and infrastructure, as well as receive alerts for predefined events. Datadog offers an Elasticsearch integration for monitoring clusters, and Bonsai supports this integration.

Getting Started

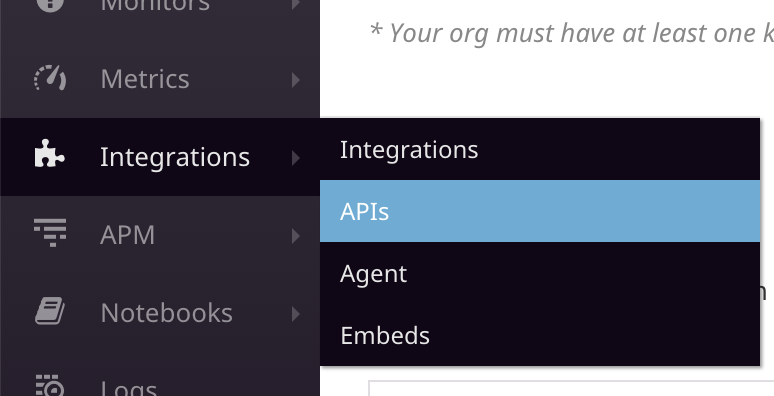

Log into Datadog, navigate to Integrations > APIs to get your current API Key

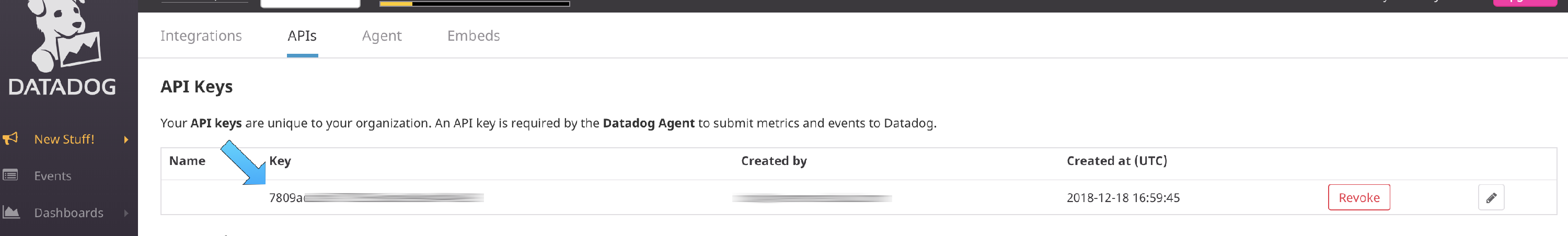

In the table of API keys, grab your current API key.

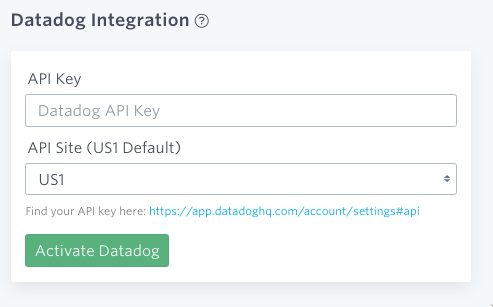

Navigate to the Integrations on your cluster dashboard under Data. There is a section marked Datadog Integration.
Enter your Datadog API key, select the API site, then press Activate Datadog. You should start to see request metrics loaded into Datadog within a few minutes.

Adjust How Metrics Are Shown In The Datadog Dashboard

Note to Enterprise tier customers who has Grafana dashboards set up with our team:

The metrics Bonsai sends to Datadog are identical to the metrics sent to Grafana. Metrics data can be processed and rendered in a variety of ways, so it's possible that the metrics shown in Datadog differ from metrics displayed in the Bonsai dashboard or Grafana. This is because Datadog features (such as smoothing) can mask performance patterns like short-lived load spikes. Bonsai considers the metrics displayed in Grafana to be authoritative.

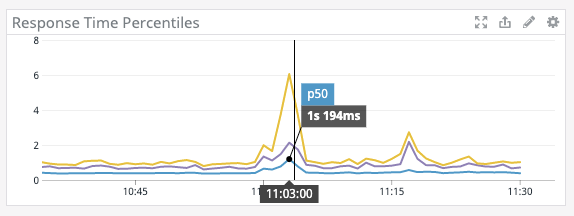

Datadog's configuration may change on how units are reported in the graphs. The request durations are ideally shown in milliseconds, and the following steps will get you back on track:

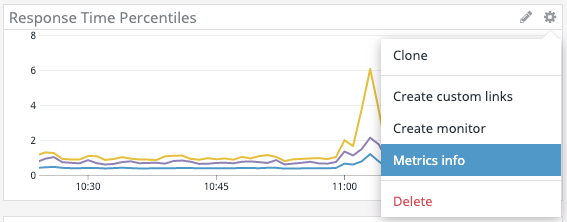

In the Datadog dashboard, select Metrics info from the "cog" dropdown menu on a graph like so:

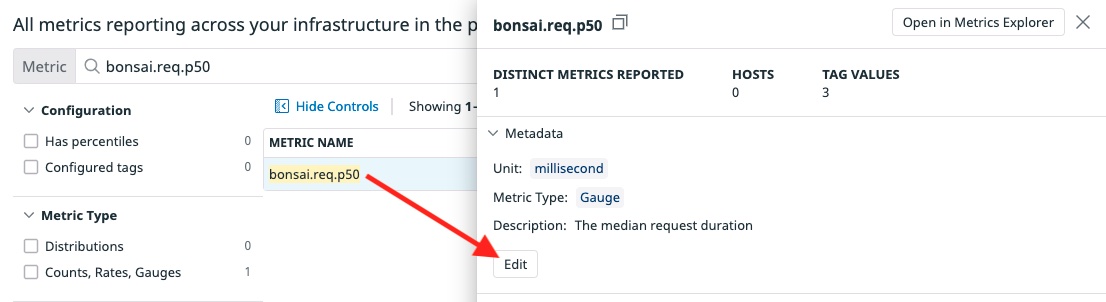

Select *.p50 and it'll take you to the Metrics Summary search for p50. Click on the Metric Name then Edit button.

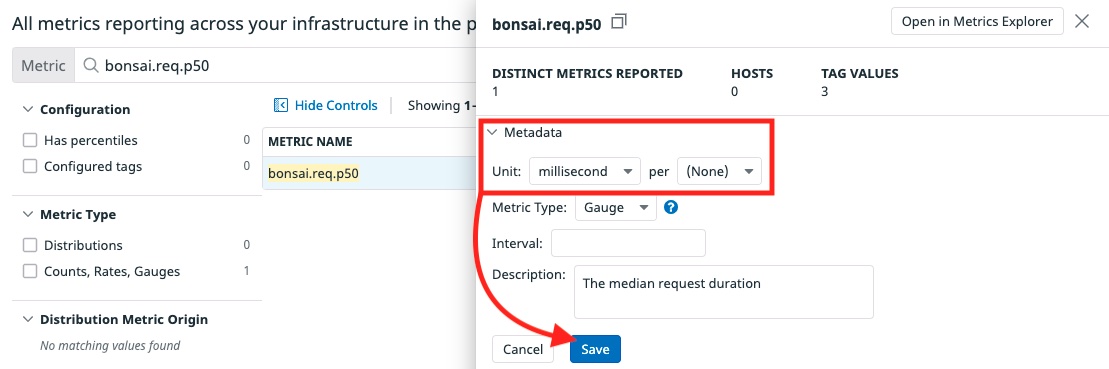

Under Metadata, change the Unit from minute to millisecond and leave per as (None). Click save.
Search for the other request duration times and edit their units to reflect millisecond. Once all three are edited, the graph should reflect the smallest time unit in milliseconds:

If you have any questions or issues, or are not seeing metrics loading into Datadog after a long time, please reach out and let us know at [email protected].

Reference: Metrics Available on Standard Subscriptions

Clusters on Standard plans have access to a variety of metrics:

Metric	Type	Description	Shown As
bonsai.req.2xx	gauge	Number of requests with a 2xx (successful) response code.	request
bonsai.req.4xx	gauge	Number of requests with a 4xx (client error) response code.	request
bonsai.req.5xx	gauge	Number of requests with a 5xx (server error) response code.	request
bonsai.req.max_concurrency	gauge	Peak concurrent requests.	connection
bonsai.req.p50	gauge	The median request duration.	minute
bonsai.req.p95	gauge	The 95th percentile request duration.	minute
bonsai.req.p99	gauge	The 99th percentile request duration.	minute
bonsai.req.queue_depth	gauge	Peak queue depth (how many requests are waiting due to concurrency limits).	connection
bonsai.req.reads	gauge	The number of requests which read data.	request
bonsai.req.rx_bytes	gauge	The number of bytes sent to elasticsearch.	byte
bonsai.req.total	gauge	The total number of requests.	request
bonsai.req.tx_bytes	gauge	The number of bytes sent to client.	byte
bonsai.req.writes	gauge	The total number of writes.	request

Reference: Metrics Available on Business / Enterprise Subscriptions

Metrics are tagged on a per-cluster basis (cluster:my-cluster-slug), allowing segmentation between Elasticsearch instances. Users with Business and Enterprise subscriptions have access to these additional metrics:

CPU Metrics

Metric	Data Type
`cpu.usage_guest`	float
`cpu.usage_guest_nice`	float
`cpu.usage_idle`	float
`cpu.usage_iowait`	float
`cpu.usage_irq`	float
`cpu.usage_nice`	float
`cpu.usage_softirq`	float
`cpu.usage_steal`	float
`cpu.usage_system`	float
`cpu.usage_user`	float

Disk Metrics

Metric	Data Type
`disk.free`	integer
`disk.inodes_free`	integer
`disk.inodes_total`	integer
`disk.inodes_used`	integer
`disk.total`	integer
`disk.used`	integer
`disk.used_percent`	float

Disk I/O Metrics

Metric	Data Type
`diskio.io_time`	integer
`diskio.iops_in_progress`	integer
`diskio.read_bytes`	integer
`diskio.read_time`	integer
`diskio.reads`	integer
`diskio.weighted_io_time`	integer
`diskio.write_bytes`	integer
`diskio.write_time`	integer
`diskio.writes`	integer

Elasticsearch Breakers

Metric	Data Type
`elasticsearch_breakers.accounting_estimated_size_in_bytes`	float
`elasticsearch_breakers.accounting_limit_size_in_bytes`	float
`elasticsearch_breakers.accounting_overhead`	float
`elasticsearch_breakers.accounting_tripped`	float
`elasticsearch_breakers.fielddata_estimated_size_in_bytes`	float
`elasticsearch_breakers.fielddata_limit_size_in_bytes`	float
`elasticsearch_breakers.fielddata_overhead`	float
`elasticsearch_breakers.fielddata_tripped`	float
`elasticsearch_breakers.in_flight_requests_estimated_size_in_bytes`	float
`elasticsearch_breakers.in_flight_requests_limit_size_in_bytes`	float
`elasticsearch_breakers.in_flight_requests_overhead`	float
`elasticsearch_breakers.in_flight_requests_tripped`	float
`elasticsearch_breakers.parent_estimated_size_in_bytes`	float
`elasticsearch_breakers.parent_limit_size_in_bytes`	float
`elasticsearch_breakers.parent_overhead`	float
`elasticsearch_breakers.parent_tripped`	float
`elasticsearch_breakers.request_estimated_size_in_bytes`	float
`elasticsearch_breakers.request_limit_size_in_bytes`	float
`elasticsearch_breakers.request_overhead`	float
`elasticsearch_breakers.request_tripped`	float

Elasticsearch Cluster Health

Metric	Data Type
`elasticsearch_cluster_health.active_primary_shards`	integer
`elasticsearch_cluster_health.active_shards`	integer
`elasticsearch_cluster_health.active_shards_percent_as_number`	float
`elasticsearch_cluster_health.initializing_shards`	integer
`elasticsearch_cluster_health.number_of_data_nodes`	integer
`elasticsearch_cluster_health.number_of_nodes`	integer
`elasticsearch_cluster_health.number_of_pending_tasks`	integer
`elasticsearch_cluster_health.relocating_shards`	integer
`elasticsearch_cluster_health.status`	string
`elasticsearch_cluster_health.status_code`	integer
`elasticsearch_cluster_health.task_max_waiting_in_queue_millis`	integer
`elasticsearch_cluster_health.timed_out`	boolean
`elasticsearch_cluster_health.unassigned_shards`	integer

Elasticsearch Cluster Stats Indices

Metric	Data Type
`elasticsearch_clusterstats_indices.completion_size_in_bytes`	float
`elasticsearch_clusterstats_indices.count`	float
`elasticsearch_clusterstats_indices.docs_count`	float
`elasticsearch_clusterstats_indices.docs_deleted`	float
`elasticsearch_clusterstats_indices.fielddata_evictions`	float
`elasticsearch_clusterstats_indices.fielddata_memory_size_in_bytes`	float
`elasticsearch_clusterstats_indices.filter_cache_evictions`	float
`elasticsearch_clusterstats_indices.filter_cache_memory_size_in_bytes`	float
`elasticsearch_clusterstats_indices.id_cache_memory_size_in_bytes`	float
`elasticsearch_clusterstats_indices.percolate_current`	float
`elasticsearch_clusterstats_indices.percolate_memory_size`	string
`elasticsearch_clusterstats_indices.percolate_memory_size_in_bytes`	float
`elasticsearch_clusterstats_indices.percolate_queries`	float
`elasticsearch_clusterstats_indices.percolate_time_in_millis`	float
`elasticsearch_clusterstats_indices.percolate_total`	float
`elasticsearch_clusterstats_indices.query_cache_cache_count`	float
`elasticsearch_clusterstats_indices.query_cache_cache_size`	float
`elasticsearch_clusterstats_indices.query_cache_evictions`	float
`elasticsearch_clusterstats_indices.query_cache_hit_count`	float
`elasticsearch_clusterstats_indices.query_cache_memory_size_in_bytes`	float
`elasticsearch_clusterstats_indices.query_cache_miss_count`	float
`elasticsearch_clusterstats_indices.query_cache_total_count`	float
`elasticsearch_clusterstats_indices.segments_count`	float
`elasticsearch_clusterstats_indices.segments_doc_values_memory_in_bytes`	float
`elasticsearch_clusterstats_indices.segments_fixed_bit_set_memory_in_bytes`	float
`elasticsearch_clusterstats_indices.segments_index_writer_max_memory_in_bytes`	float
`elasticsearch_clusterstats_indices.segments_index_writer_memory_in_bytes`	float
`elasticsearch_clusterstats_indices.segments_max_unsafe_auto_id_timestamp`	float
`elasticsearch_clusterstats_indices.segments_memory_in_bytes`	float
`elasticsearch_clusterstats_indices.segments_norms_memory_in_bytes`	float
`elasticsearch_clusterstats_indices.segments_points_memory_in_bytes`	float
`elasticsearch_clusterstats_indices.segments_stored_fields_memory_in_bytes`	float
`elasticsearch_clusterstats_indices.segments_term_vectors_memory_in_bytes`	float
`elasticsearch_clusterstats_indices.segments_terms_memory_in_bytes`	float
`elasticsearch_clusterstats_indices.segments_version_map_memory_in_bytes`	float
`elasticsearch_clusterstats_indices.shards_index_primaries_avg`	float
`elasticsearch_clusterstats_indices.shards_index_primaries_max`	float
`elasticsearch_clusterstats_indices.shards_index_primaries_min`	float
`elasticsearch_clusterstats_indices.shards_index_replication_avg`	float
`elasticsearch_clusterstats_indices.shards_index_replication_max`	float
`elasticsearch_clusterstats_indices.shards_index_replication_min`	float
`elasticsearch_clusterstats_indices.shards_index_shards_avg`	float
`elasticsearch_clusterstats_indices.shards_index_shards_max`	float
`elasticsearch_clusterstats_indices.shards_index_shards_min`	float
`elasticsearch_clusterstats_indices.shards_primaries`	float
`elasticsearch_clusterstats_indices.shards_replication`	float
`elasticsearch_clusterstats_indices.shards_total`	float
`elasticsearch_clusterstats_indices.store_size_in_bytes`	float
`elasticsearch_clusterstats_indices.store_throttle_time_in_millis`	float
`elasticsearch_clusterstats_nodes.count_client`	float
`elasticsearch_clusterstats_nodes.count_coordinating_only`	float
`elasticsearch_clusterstats_nodes.count_data`	float
`elasticsearch_clusterstats_nodes.count_data_only`	float
`elasticsearch_clusterstats_nodes.count_ingest`	float
`elasticsearch_clusterstats_nodes.count_master`	float
`elasticsearch_clusterstats_nodes.count_master_data`	float
`elasticsearch_clusterstats_nodes.count_master_only`	float
`elasticsearch_clusterstats_nodes.count_total`	float
`elasticsearch_clusterstats_nodes.discovery_types_zen`	float
`elasticsearch_clusterstats_nodes.fs_available_in_bytes`	float
`elasticsearch_clusterstats_nodes.fs_disk_io_op`	float
`elasticsearch_clusterstats_nodes.fs_disk_io_size_in_bytes`	float
`elasticsearch_clusterstats_nodes.fs_disk_read_size_in_bytes`	float
`elasticsearch_clusterstats_nodes.fs_disk_reads`	float
`elasticsearch_clusterstats_nodes.fs_disk_write_size_in_bytes`	float
`elasticsearch_clusterstats_nodes.fs_disk_writes`	float
`elasticsearch_clusterstats_nodes.fs_free_in_bytes`	float
`elasticsearch_clusterstats_nodes.fs_spins`	string
`elasticsearch_clusterstats_nodes.fs_total_in_bytes`	float
`elasticsearch_clusterstats_nodes.jvm_max_uptime_in_millis`	float
`elasticsearch_clusterstats_nodes.jvm_mem_heap_max_in_bytes`	float
`elasticsearch_clusterstats_nodes.jvm_mem_heap_used_in_bytes`	float
`elasticsearch_clusterstats_nodes.jvm_threads`	float
`elasticsearch_clusterstats_nodes.jvm_versions_0_bundled_jdk`	boolean
`elasticsearch_clusterstats_nodes.jvm_versions_0_count`	float
`elasticsearch_clusterstats_nodes.jvm_versions_0_using_bundled_jdk`	boolean
`elasticsearch_clusterstats_nodes.jvm_versions_0_version`	string
`elasticsearch_clusterstats_nodes.jvm_versions_0_vm_vendor`	string
`elasticsearch_clusterstats_nodes.jvm_versions_0_vm_version`	string
`elasticsearch_clusterstats_nodes.network_types_http_types_netty4`	float
`elasticsearch_clusterstats_nodes.network_types_transport_types_netty4`	float
`elasticsearch_clusterstats_nodes.os_allocated_processors`	float
`elasticsearch_clusterstats_nodes.os_available_processors`	float
`elasticsearch_clusterstats_nodes.os_cpu_0_cache_size_in_bytes`	float
`elasticsearch_clusterstats_nodes.os_cpu_0_cores_per_socket`	float
`elasticsearch_clusterstats_nodes.os_cpu_0_count`	float
`elasticsearch_clusterstats_nodes.os_cpu_0_mhz`	float
`elasticsearch_clusterstats_nodes.os_cpu_0_model`	string
`elasticsearch_clusterstats_nodes.os_cpu_0_total_cores`	float
`elasticsearch_clusterstats_nodes.os_cpu_0_total_sockets`	float
`elasticsearch_clusterstats_nodes.os_cpu_0_vendor`	string
`elasticsearch_clusterstats_nodes.os_mem_free_in_bytes`	float
`elasticsearch_clusterstats_nodes.os_mem_free_percent`	float
`elasticsearch_clusterstats_nodes.os_mem_total_in_bytes`	float
`elasticsearch_clusterstats_nodes.os_mem_used_in_bytes`	float
`elasticsearch_clusterstats_nodes.os_mem_used_percent`	float
`elasticsearch_clusterstats_nodes.packaging_types_0_count`	float
`elasticsearch_clusterstats_nodes.packaging_types_0_flavor`	string
`elasticsearch_clusterstats_nodes.packaging_types_0_type`	string
`elasticsearch_clusterstats_nodes.plugins_0_description`	string
`elasticsearch_clusterstats_nodes.plugins_0_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_0_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_0_isolated`	boolean
`elasticsearch_clusterstats_nodes.plugins_0_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_0_jvm`	boolean
`elasticsearch_clusterstats_nodes.plugins_0_requires_keystore`	boolean
`elasticsearch_clusterstats_nodes.plugins_0_site`	boolean
`elasticsearch_clusterstats_nodes.plugins_0_version`	string
`elasticsearch_clusterstats_nodes.plugins_10_description`	string
`elasticsearch_clusterstats_nodes.plugins_10_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_10_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_10_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_10_version`	string
`elasticsearch_clusterstats_nodes.plugins_11_description`	string
`elasticsearch_clusterstats_nodes.plugins_11_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_11_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_11_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_11_version`	string
`elasticsearch_clusterstats_nodes.plugins_12_description`	string
`elasticsearch_clusterstats_nodes.plugins_12_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_12_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_12_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_12_version`	string
`elasticsearch_clusterstats_nodes.plugins_13_description`	string
`elasticsearch_clusterstats_nodes.plugins_13_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_13_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_13_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_13_version`	string
`elasticsearch_clusterstats_nodes.plugins_14_description`	string
`elasticsearch_clusterstats_nodes.plugins_14_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_14_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_14_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_14_version`	string
`elasticsearch_clusterstats_nodes.plugins_15_description`	string
`elasticsearch_clusterstats_nodes.plugins_15_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_15_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_15_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_15_version`	string
`elasticsearch_clusterstats_nodes.plugins_16_description`	string
`elasticsearch_clusterstats_nodes.plugins_16_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_16_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_16_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_16_version`	string
`elasticsearch_clusterstats_nodes.plugins_17_description`	string
`elasticsearch_clusterstats_nodes.plugins_17_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_17_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_17_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_17_version`	string
`elasticsearch_clusterstats_nodes.plugins_18_description`	string
`elasticsearch_clusterstats_nodes.plugins_18_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_18_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_18_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_18_version`	string
`elasticsearch_clusterstats_nodes.plugins_19_description`	string
`elasticsearch_clusterstats_nodes.plugins_19_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_19_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_19_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_19_version`	string
`elasticsearch_clusterstats_nodes.plugins_1_description`	string
`elasticsearch_clusterstats_nodes.plugins_1_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_1_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_1_isolated`	boolean
`elasticsearch_clusterstats_nodes.plugins_1_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_1_jvm`	boolean
`elasticsearch_clusterstats_nodes.plugins_1_requires_keystore`	boolean
`elasticsearch_clusterstats_nodes.plugins_1_site`	boolean
`elasticsearch_clusterstats_nodes.plugins_1_version`	string
`elasticsearch_clusterstats_nodes.plugins_2_description`	string
`elasticsearch_clusterstats_nodes.plugins_2_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_2_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_2_isolated`	boolean
`elasticsearch_clusterstats_nodes.plugins_2_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_2_jvm`	boolean
`elasticsearch_clusterstats_nodes.plugins_2_requires_keystore`	boolean
`elasticsearch_clusterstats_nodes.plugins_2_site`	boolean
`elasticsearch_clusterstats_nodes.plugins_2_version`	string
`elasticsearch_clusterstats_nodes.plugins_3_description`	string
`elasticsearch_clusterstats_nodes.plugins_3_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_3_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_3_isolated`	boolean
`elasticsearch_clusterstats_nodes.plugins_3_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_3_jvm`	boolean
`elasticsearch_clusterstats_nodes.plugins_3_requires_keystore`	boolean
`elasticsearch_clusterstats_nodes.plugins_3_site`	boolean
`elasticsearch_clusterstats_nodes.plugins_3_version`	string
`elasticsearch_clusterstats_nodes.plugins_4_description`	string
`elasticsearch_clusterstats_nodes.plugins_4_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_4_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_4_isolated`	boolean
`elasticsearch_clusterstats_nodes.plugins_4_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_4_jvm`	boolean
`elasticsearch_clusterstats_nodes.plugins_4_requires_keystore`	boolean
`elasticsearch_clusterstats_nodes.plugins_4_site`	boolean
`elasticsearch_clusterstats_nodes.plugins_4_version`	string
`elasticsearch_clusterstats_nodes.plugins_5_description`	string
`elasticsearch_clusterstats_nodes.plugins_5_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_5_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_5_isolated`	boolean
`elasticsearch_clusterstats_nodes.plugins_5_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_5_jvm`	boolean
`elasticsearch_clusterstats_nodes.plugins_5_requires_keystore`	boolean
`elasticsearch_clusterstats_nodes.plugins_5_site`	boolean
`elasticsearch_clusterstats_nodes.plugins_5_version`	string
`elasticsearch_clusterstats_nodes.plugins_6_description`	string
`elasticsearch_clusterstats_nodes.plugins_6_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_6_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_6_isolated`	boolean
`elasticsearch_clusterstats_nodes.plugins_6_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_6_jvm`	boolean
`elasticsearch_clusterstats_nodes.plugins_6_requires_keystore`	boolean
`elasticsearch_clusterstats_nodes.plugins_6_site`	boolean
`elasticsearch_clusterstats_nodes.plugins_6_version`	string
`elasticsearch_clusterstats_nodes.plugins_7_description`	string
`elasticsearch_clusterstats_nodes.plugins_7_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_7_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_7_isolated`	boolean
`elasticsearch_clusterstats_nodes.plugins_7_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_7_jvm`	boolean
`elasticsearch_clusterstats_nodes.plugins_7_requires_keystore`	boolean
`elasticsearch_clusterstats_nodes.plugins_7_site`	boolean
`elasticsearch_clusterstats_nodes.plugins_7_version`	string
`elasticsearch_clusterstats_nodes.plugins_8_description`	string
`elasticsearch_clusterstats_nodes.plugins_8_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_8_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_8_isolated`	boolean
`elasticsearch_clusterstats_nodes.plugins_8_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_8_jvm`	boolean
`elasticsearch_clusterstats_nodes.plugins_8_requires_keystore`	boolean
`elasticsearch_clusterstats_nodes.plugins_8_site`	boolean
`elasticsearch_clusterstats_nodes.plugins_8_version`	string
`elasticsearch_clusterstats_nodes.plugins_9_description`	string
`elasticsearch_clusterstats_nodes.plugins_9_elasticsearch_version`	string
`elasticsearch_clusterstats_nodes.plugins_9_has_native_controller`	boolean
`elasticsearch_clusterstats_nodes.plugins_9_java_version`	string
`elasticsearch_clusterstats_nodes.plugins_9_version`	string
`elasticsearch_clusterstats_nodes.process_cpu_percent`	float
`elasticsearch_clusterstats_nodes.process_open_file_descriptors_avg`	float
`elasticsearch_clusterstats_nodes.process_open_file_descriptors_max`	float
`elasticsearch_clusterstats_nodes.process_open_file_descriptors_min`	float
`elasticsearch_clusterstats_nodes.versions_0`	string
`elasticsearch_clusterstats_nodes.versions_1`	string

Elasticsearch Filesystem Stats Indices

Metric	Data Type
`elasticsearch_fs.data_0_available_in_bytes`	float
`elasticsearch_fs.data_0_disk_io_op`	float
`elasticsearch_fs.data_0_disk_io_size_in_bytes`	float
`elasticsearch_fs.data_0_disk_read_size_in_bytes`	float
`elasticsearch_fs.data_0_disk_reads`	float
`elasticsearch_fs.data_0_disk_write_size_in_bytes`	float
`elasticsearch_fs.data_0_disk_writes`	float
`elasticsearch_fs.data_0_free_in_bytes`	float
`elasticsearch_fs.data_0_total_in_bytes`	float
`elasticsearch_fs.io_stats_devices_0_operations`	float
`elasticsearch_fs.io_stats_devices_0_read_kilobytes`	float
`elasticsearch_fs.io_stats_devices_0_read_operations`	float
`elasticsearch_fs.io_stats_devices_0_write_kilobytes`	float
`elasticsearch_fs.io_stats_devices_0_write_operations`	float
`elasticsearch_fs.io_stats_total_operations`	float
`elasticsearch_fs.io_stats_total_read_kilobytes`	float
`elasticsearch_fs.io_stats_total_read_operations`	float
`elasticsearch_fs.io_stats_total_write_kilobytes`	float
`elasticsearch_fs.io_stats_total_write_operations`	float
`elasticsearch_fs.least_usage_estimate_available_in_bytes`	float
`elasticsearch_fs.least_usage_estimate_total_in_bytes`	float
`elasticsearch_fs.least_usage_estimate_used_disk_percent`	float
`elasticsearch_fs.most_usage_estimate_available_in_bytes`	float
`elasticsearch_fs.most_usage_estimate_total_in_bytes`	float
`elasticsearch_fs.most_usage_estimate_used_disk_percent`	float
`elasticsearch_fs.timestamp`	float
`elasticsearch_fs.total_available_in_bytes`	float
`elasticsearch_fs.total_disk_io_op`	float
`elasticsearch_fs.total_disk_io_size_in_bytes`	float
`elasticsearch_fs.total_disk_read_size_in_bytes`	float
`elasticsearch_fs.total_disk_reads`	float
`elasticsearch_fs.total_disk_write_size_in_bytes`	float
`elasticsearch_fs.total_disk_writes`	float
`elasticsearch_fs.total_free_in_bytes`	float
`elasticsearch_fs.total_total_in_bytes`	float

Elasticsearch Other indices

Metric	Data Type
`elasticsearch_.current_open`	float
`elasticsearch_.total_opened`	float
`elasticsearch_indices.completion_size_in_bytes`	float
`elasticsearch_indices.docs_count`	float
`elasticsearch_indices.docs_deleted`	float
`elasticsearch_indices.fielddata_evictions`	float
`elasticsearch_indices.fielddata_memory_size_in_bytes`	float
`elasticsearch_indices.filter_cache_evictions`	float
`elasticsearch_indices.filter_cache_memory_size_in_bytes`	float
`elasticsearch_indices.flush_periodic`	float
`elasticsearch_indices.flush_total`	float
`elasticsearch_indices.flush_total_time_in_millis`	float
`elasticsearch_indices.get_current`	float
`elasticsearch_indices.get_exists_time_in_millis`	float
`elasticsearch_indices.get_exists_total`	float
`elasticsearch_indices.get_missing_time_in_millis`	float
`elasticsearch_indices.get_missing_total`	float
`elasticsearch_indices.get_time_in_millis`	float
`elasticsearch_indices.get_total`	float
`elasticsearch_indices.id_cache_memory_size_in_bytes`	float
`elasticsearch_indices.indexing_delete_current`	float
`elasticsearch_indices.indexing_delete_time_in_millis`	float
`elasticsearch_indices.indexing_delete_total`	float
`elasticsearch_indices.indexing_index_current`	float
`elasticsearch_indices.indexing_index_failed`	float
`elasticsearch_indices.indexing_index_time_in_millis`	float
`elasticsearch_indices.indexing_index_total`	float
`elasticsearch_indices.indexing_noop_update_total`	float
`elasticsearch_indices.indexing_throttle_time_in_millis`	float
`elasticsearch_indices.merges_current`	float
`elasticsearch_indices.merges_current_docs`	float
`elasticsearch_indices.merges_current_size_in_bytes`	float
`elasticsearch_indices.merges_total`	float
`elasticsearch_indices.merges_total_auto_throttle_in_bytes`	float
`elasticsearch_indices.merges_total_docs`	float
`elasticsearch_indices.merges_total_size_in_bytes`	float
`elasticsearch_indices.merges_total_stopped_time_in_millis`	float
`elasticsearch_indices.merges_total_throttled_time_in_millis`	float
`elasticsearch_indices.merges_total_time_in_millis`	float
`elasticsearch_indices.percolate_current`	float
`elasticsearch_indices.percolate_memory_size_in_bytes`	float
`elasticsearch_indices.percolate_queries`	float
`elasticsearch_indices.percolate_time_in_millis`	float
`elasticsearch_indices.percolate_total`	float
`elasticsearch_indices.query_cache_cache_count`	float
`elasticsearch_indices.query_cache_cache_size`	float
`elasticsearch_indices.query_cache_evictions`	float
`elasticsearch_indices.query_cache_hit_count`	float
`elasticsearch_indices.query_cache_memory_size_in_bytes`	float
`elasticsearch_indices.query_cache_miss_count`	float
`elasticsearch_indices.query_cache_total_count`	float
`elasticsearch_indices.recovery_current_as_source`	float
`elasticsearch_indices.recovery_current_as_target`	float
`elasticsearch_indices.recovery_throttle_time_in_millis`	float
`elasticsearch_indices.refresh_external_total`	float
`elasticsearch_indices.refresh_external_total_time_in_millis`	float
`elasticsearch_indices.refresh_listeners`	float
`elasticsearch_indices.refresh_total`	float
`elasticsearch_indices.refresh_total_time_in_millis`	float
`elasticsearch_indices.request_cache_evictions`	float
`elasticsearch_indices.request_cache_hit_count`	float
`elasticsearch_indices.request_cache_memory_size_in_bytes`	float
`elasticsearch_indices.request_cache_miss_count`	float
`elasticsearch_indices.search_fetch_current`	float
`elasticsearch_indices.search_fetch_time_in_millis`	float
`elasticsearch_indices.search_fetch_total`	float
`elasticsearch_indices.search_open_contexts`	float
`elasticsearch_indices.search_query_current`	float
`elasticsearch_indices.search_query_time_in_millis`	float
`elasticsearch_indices.search_query_total`	float
`elasticsearch_indices.search_scroll_current`	float
`elasticsearch_indices.search_scroll_time_in_millis`	float
`elasticsearch_indices.search_scroll_total`	float
`elasticsearch_indices.search_suggest_current`	float
`elasticsearch_indices.search_suggest_time_in_millis`	float
`elasticsearch_indices.search_suggest_total`	float
`elasticsearch_indices.segments_count`	float
`elasticsearch_indices.segments_doc_values_memory_in_bytes`	float
`elasticsearch_indices.segments_fixed_bit_set_memory_in_bytes`	float
`elasticsearch_indices.segments_index_writer_max_memory_in_bytes`	float
`elasticsearch_indices.segments_index_writer_memory_in_bytes`	float
`elasticsearch_indices.segments_max_unsafe_auto_id_timestamp`	float
`elasticsearch_indices.segments_memory_in_bytes`	float
`elasticsearch_indices.segments_norms_memory_in_bytes`	float
`elasticsearch_indices.segments_points_memory_in_bytes`	float
`elasticsearch_indices.segments_stored_fields_memory_in_bytes`	float
`elasticsearch_indices.segments_term_vectors_memory_in_bytes`	float
`elasticsearch_indices.segments_terms_memory_in_bytes`	float
`elasticsearch_indices.segments_version_map_memory_in_bytes`	float
`elasticsearch_indices.store_size_in_bytes`	float
`elasticsearch_indices.store_throttle_time_in_millis`	float
`elasticsearch_indices.suggest_current`	float
`elasticsearch_indices.suggest_time_in_millis`	float
`elasticsearch_indices.suggest_total`	float
`elasticsearch_indices.translog_earliest_last_modified_age`	float
`elasticsearch_indices.translog_operations`	float
`elasticsearch_indices.translog_size_in_bytes`	float
`elasticsearch_indices.translog_uncommitted_operations`	float
`elasticsearch_indices.translog_uncommitted_size_in_bytes`	float
`elasticsearch_indices.warmer_current`	float
`elasticsearch_indices.warmer_total`	float
`elasticsearch_indices.warmer_total_time_in_millis`	float
`elasticsearch_jvm.buffer_pools_direct_count`	float
`elasticsearch_jvm.buffer_pools_direct_total_capacity_in_bytes`	float
`elasticsearch_jvm.buffer_pools_direct_used_in_bytes`	float
`elasticsearch_jvm.buffer_pools_mapped_count`	float
`elasticsearch_jvm.buffer_pools_mapped_total_capacity_in_bytes`	float
`elasticsearch_jvm.buffer_pools_mapped_used_in_bytes`	float
`elasticsearch_jvm.classes_current_loaded_count`	float
`elasticsearch_jvm.classes_total_loaded_count`	float
`elasticsearch_jvm.classes_total_unloaded_count`	float
`elasticsearch_jvm.gc_collectors_old_collection_count`	float
`elasticsearch_jvm.gc_collectors_old_collection_time_in_millis`	float
`elasticsearch_jvm.gc_collectors_young_collection_count`	float
`elasticsearch_jvm.gc_collectors_young_collection_time_in_millis`	float
`elasticsearch_jvm.mem_heap_committed_in_bytes`	float
`elasticsearch_jvm.mem_heap_max_in_bytes`	float
`elasticsearch_jvm.mem_heap_used_in_bytes`	float
`elasticsearch_jvm.mem_heap_used_percent`	float
`elasticsearch_jvm.mem_non_heap_committed_in_bytes`	float
`elasticsearch_jvm.mem_non_heap_used_in_bytes`	float
`elasticsearch_jvm.mem_pools_old_max_in_bytes`	float
`elasticsearch_jvm.mem_pools_old_peak_max_in_bytes`	float
`elasticsearch_jvm.mem_pools_old_peak_used_in_bytes`	float
`elasticsearch_jvm.mem_pools_old_used_in_bytes`	float
`elasticsearch_jvm.mem_pools_survivor_max_in_bytes`	float
`elasticsearch_jvm.mem_pools_survivor_peak_max_in_bytes`	float
`elasticsearch_jvm.mem_pools_survivor_peak_used_in_bytes`	float
`elasticsearch_jvm.mem_pools_survivor_used_in_bytes`	float
`elasticsearch_jvm.mem_pools_young_max_in_bytes`	float
`elasticsearch_jvm.mem_pools_young_peak_max_in_bytes`	float
`elasticsearch_jvm.mem_pools_young_peak_used_in_bytes`	float
`elasticsearch_jvm.mem_pools_young_used_in_bytes`	float
`elasticsearch_jvm.threads_count`	float
`elasticsearch_jvm.threads_peak_count`	float
`elasticsearch_jvm.timestamp`	float
`elasticsearch_jvm.uptime_in_millis`	float
`elasticsearch_os.cgroup_cpu_cfs_period_micros`	float
`elasticsearch_os.cgroup_cpu_cfs_quota_micros`	float
`elasticsearch_os.cgroup_cpu_stat_number_of_elapsed_periods`	float
`elasticsearch_os.cgroup_cpu_stat_number_of_times_throttled`	float
`elasticsearch_os.cgroup_cpu_stat_time_throttled_nanos`	float
`elasticsearch_os.cgroup_cpuacct_usage_nanos`	float
`elasticsearch_os.cpu_idle`	float
`elasticsearch_os.cpu_load_average_15m`	float
`elasticsearch_os.cpu_load_average_1m`	float
`elasticsearch_os.cpu_load_average_5m`	float
`elasticsearch_os.cpu_percent`	float
`elasticsearch_os.cpu_stolen`	float
`elasticsearch_os.cpu_sys`	float
`elasticsearch_os.cpu_usage`	float
`elasticsearch_os.cpu_user`	float
`elasticsearch_os.load_average`	float
`elasticsearch_os.load_average_0`	float
`elasticsearch_os.load_average_1`	float
`elasticsearch_os.load_average_2`	float
`elasticsearch_os.mem_actual_free_in_bytes`	float
`elasticsearch_os.mem_actual_used_in_bytes`	float
`elasticsearch_os.mem_free_in_bytes`	float
`elasticsearch_os.mem_free_percent`	float
`elasticsearch_os.mem_total_in_bytes`	float
`elasticsearch_os.mem_used_in_bytes`	float
`elasticsearch_os.mem_used_percent`	float
`elasticsearch_os.swap_free_in_bytes`	float
`elasticsearch_os.swap_total_in_bytes`	float
`elasticsearch_os.swap_used_in_bytes`	float
`elasticsearch_os.timestamp`	float
`elasticsearch_os.uptime_in_millis`	float
`elasticsearch_process.cpu_percent`	float
`elasticsearch_process.cpu_sys_in_millis`	float
`elasticsearch_process.cpu_total_in_millis`	float
`elasticsearch_process.cpu_user_in_millis`	float
`elasticsearch_process.max_file_descriptors`	float
`elasticsearch_process.mem_resident_in_bytes`	float
`elasticsearch_process.mem_share_in_bytes`	float
`elasticsearch_process.mem_total_virtual_in_bytes`	float
`elasticsearch_process.open_file_descriptors`	float
`elasticsearch_process.timestamp`	float
`elasticsearch_thread_pool.analyze_active`	float
`elasticsearch_thread_pool.analyze_completed`	float
`elasticsearch_thread_pool.analyze_largest`	float
`elasticsearch_thread_pool.analyze_queue`	float
`elasticsearch_thread_pool.analyze_rejected`	float
`elasticsearch_thread_pool.analyze_threads`	float
`elasticsearch_thread_pool.bench_active`	float
`elasticsearch_thread_pool.bench_completed`	float
`elasticsearch_thread_pool.bench_largest`	float
`elasticsearch_thread_pool.bench_queue`	float
`elasticsearch_thread_pool.bench_rejected`	float
`elasticsearch_thread_pool.bench_threads`	float
`elasticsearch_thread_pool.bulk_active`	float
`elasticsearch_thread_pool.bulk_completed`	float
`elasticsearch_thread_pool.bulk_largest`	float
`elasticsearch_thread_pool.bulk_queue`	float
`elasticsearch_thread_pool.bulk_rejected`	float
`elasticsearch_thread_pool.bulk_threads`	float
`elasticsearch_thread_pool.fetch_shard_started_active`	float
`elasticsearch_thread_pool.fetch_shard_started_completed`	float
`elasticsearch_thread_pool.fetch_shard_started_largest`	float
`elasticsearch_thread_pool.fetch_shard_started_queue`	float
`elasticsearch_thread_pool.fetch_shard_started_rejected`	float
`elasticsearch_thread_pool.fetch_shard_started_threads`	float
`elasticsearch_thread_pool.fetch_shard_store_active`	float
`elasticsearch_thread_pool.fetch_shard_store_completed`	float
`elasticsearch_thread_pool.fetch_shard_store_largest`	float
`elasticsearch_thread_pool.fetch_shard_store_queue`	float
`elasticsearch_thread_pool.fetch_shard_store_rejected`	float
`elasticsearch_thread_pool.fetch_shard_store_threads`	float
`elasticsearch_thread_pool.flush_active`	float
`elasticsearch_thread_pool.flush_completed`	float
`elasticsearch_thread_pool.flush_largest`	float
`elasticsearch_thread_pool.flush_queue`	float
`elasticsearch_thread_pool.flush_rejected`	float
`elasticsearch_thread_pool.flush_threads`	float
`elasticsearch_thread_pool.force_merge_active`	float
`elasticsearch_thread_pool.force_merge_completed`	float
`elasticsearch_thread_pool.force_merge_largest`	float
`elasticsearch_thread_pool.force_merge_queue`	float
`elasticsearch_thread_pool.force_merge_rejected`	float
`elasticsearch_thread_pool.force_merge_threads`	float
`elasticsearch_thread_pool.generic_active`	float
`elasticsearch_thread_pool.generic_completed`	float
`elasticsearch_thread_pool.generic_largest`	float
`elasticsearch_thread_pool.generic_queue`	float
`elasticsearch_thread_pool.generic_rejected`	float
`elasticsearch_thread_pool.generic_threads`	float
`elasticsearch_thread_pool.get_active`	float
`elasticsearch_thread_pool.get_completed`	float
`elasticsearch_thread_pool.get_largest`	float
`elasticsearch_thread_pool.get_queue`	float
`elasticsearch_thread_pool.get_rejected`	float
`elasticsearch_thread_pool.get_threads`	float
`elasticsearch_thread_pool.index_active`	float
`elasticsearch_thread_pool.index_completed`	float
`elasticsearch_thread_pool.index_largest`	float
`elasticsearch_thread_pool.index_queue`	float
`elasticsearch_thread_pool.index_rejected`	float
`elasticsearch_thread_pool.index_threads`	float
`elasticsearch_thread_pool.listener_active`	float
`elasticsearch_thread_pool.listener_completed`	float
`elasticsearch_thread_pool.listener_largest`	float
`elasticsearch_thread_pool.listener_queue`	float
`elasticsearch_thread_pool.listener_rejected`	float
`elasticsearch_thread_pool.listener_threads`	float
`elasticsearch_thread_pool.management_active`	float
`elasticsearch_thread_pool.management_completed`	float
`elasticsearch_thread_pool.management_largest`	float
`elasticsearch_thread_pool.management_queue`	float
`elasticsearch_thread_pool.management_rejected`	float
`elasticsearch_thread_pool.management_threads`	float
`elasticsearch_thread_pool.merge_active`	float
`elasticsearch_thread_pool.merge_completed`	float
`elasticsearch_thread_pool.merge_largest`	float
`elasticsearch_thread_pool.merge_queue`	float
`elasticsearch_thread_pool.merge_rejected`	float
`elasticsearch_thread_pool.merge_threads`	float
`elasticsearch_thread_pool.optimize_active`	float
`elasticsearch_thread_pool.optimize_completed`	float
`elasticsearch_thread_pool.optimize_largest`	float
`elasticsearch_thread_pool.optimize_queue`	float
`elasticsearch_thread_pool.optimize_rejected`	float
`elasticsearch_thread_pool.optimize_threads`	float
`elasticsearch_thread_pool.percolate_active`	float
`elasticsearch_thread_pool.percolate_completed`	float
`elasticsearch_thread_pool.percolate_largest`	float
`elasticsearch_thread_pool.percolate_queue`	float
`elasticsearch_thread_pool.percolate_rejected`	float
`elasticsearch_thread_pool.percolate_threads`	float
`elasticsearch_thread_pool.refresh_active`	float
`elasticsearch_thread_pool.refresh_completed`	float
`elasticsearch_thread_pool.refresh_largest`	float
`elasticsearch_thread_pool.refresh_queue`	float
`elasticsearch_thread_pool.refresh_rejected`	float
`elasticsearch_thread_pool.refresh_threads`	float
`elasticsearch_thread_pool.search_active`	float
`elasticsearch_thread_pool.search_completed`	float
`elasticsearch_thread_pool.search_largest`	float
`elasticsearch_thread_pool.search_queue`	float
`elasticsearch_thread_pool.search_rejected`	float
`elasticsearch_thread_pool.search_threads`	float
`elasticsearch_thread_pool.search_throttled_active`	float
`elasticsearch_thread_pool.search_throttled_completed`	float
`elasticsearch_thread_pool.search_throttled_largest`	float
`elasticsearch_thread_pool.search_throttled_queue`	float
`elasticsearch_thread_pool.search_throttled_rejected`	float
`elasticsearch_thread_pool.search_throttled_threads`	float
`elasticsearch_thread_pool.snapshot_active`	float
`elasticsearch_thread_pool.snapshot_completed`	float
`elasticsearch_thread_pool.snapshot_largest`	float
`elasticsearch_thread_pool.snapshot_queue`	float
`elasticsearch_thread_pool.snapshot_rejected`	float
`elasticsearch_thread_pool.snapshot_threads`	float
`elasticsearch_thread_pool.suggest_active`	float
`elasticsearch_thread_pool.suggest_completed`	float
`elasticsearch_thread_pool.suggest_largest`	float
`elasticsearch_thread_pool.suggest_queue`	float
`elasticsearch_thread_pool.suggest_rejected`	float
`elasticsearch_thread_pool.suggest_threads`	float
`elasticsearch_thread_pool.warmer_active`	float
`elasticsearch_thread_pool.warmer_completed`	float
`elasticsearch_thread_pool.warmer_largest`	float
`elasticsearch_thread_pool.warmer_queue`	float
`elasticsearch_thread_pool.warmer_rejected`	float
`elasticsearch_thread_pool.warmer_threads`	float
`elasticsearch_thread_pool.write_active`	float
`elasticsearch_thread_pool.write_completed`	float
`elasticsearch_thread_pool.write_largest`	float
`elasticsearch_thread_pool.write_queue`	float
`elasticsearch_thread_pool.write_rejected`	float
`elasticsearch_thread_pool.write_threads`	float
`elasticsearch_transport.rx_count`	float
`elasticsearch_transport.rx_size_in_bytes`	float
`elasticsearch_transport.server_open`	float
`elasticsearch_transport.tx_count`	float
`elasticsearch_transport.tx_size_in_bytes`	float

Other indices

Metric	Data Type
`haproxy.active_servers`	integer
`haproxy.addr`	string
`haproxy.backup_servers`	integer
`haproxy.bin`	integer
`haproxy.bout`	integer
`haproxy.cache_hits`	integer
`haproxy.cache_lookups`	integer
`haproxy.check_code`	integer
`haproxy.check_duration`	integer
`haproxy.check_fall`	integer
`haproxy.check_health`	integer
`haproxy.check_rise`	integer
`haproxy.check_status`	string
`haproxy.chkdown`	integer
`haproxy.chkfail`	integer
`haproxy.cli_abort`	integer
`haproxy.comp_byp`	integer
`haproxy.comp_in`	integer
`haproxy.comp_out`	integer
`haproxy.comp_rsp`	integer
`haproxy.conn_rate`	integer
`haproxy.conn_rate_max`	integer
`haproxy.conn_tot`	integer
`haproxy.connect`	integer
`haproxy.ctime`	integer
`haproxy.dcon`	integer
`haproxy.downtime`	integer
`haproxy.dreq`	integer
`haproxy.dresp`	integer
`haproxy.dses`	integer
`haproxy.econ`	integer
`haproxy.ereq`	integer
`haproxy.eresp`	integer
`haproxy.hanafail`	integer
`haproxy.http_response`.1xx	integer
`haproxy.http_response`.2xx	integer
`haproxy.http_response`.3xx	integer
`haproxy.http_response`.4xx	integer
`haproxy.http_response`.5xx	integer
`haproxy.http_response`.other	integer
`haproxy.iid`	integer
`haproxy.intercepted`	integer
`haproxy.last_chk`	string
`haproxy.lastchg`	integer
`haproxy.lastsess`	integer
`haproxy.lbtot`	integer
`haproxy.mode`	string
`haproxy.pid`	integer
`haproxy.qcur`	integer
`haproxy.qmax`	integer
`haproxy.qtime`	integer
`haproxy.rate`	integer
`haproxy.rate_lim`	integer
`haproxy.rate_max`	integer
`haproxy.req_rate`	integer
`haproxy.req_rate_max`	integer
`haproxy.req_tot`	integer
`haproxy.reuse`	integer
`haproxy.rtime`	integer
`haproxy.scur`	integer
`haproxy.sid`	integer
`haproxy.slim`	integer
`haproxy.smax`	integer
`haproxy.srv_abort`	integer
`haproxy.status`	string
`haproxy.stot`	integer
`haproxy.ttime`	integer
`haproxy.weight`	integer
`haproxy.wredis`	integer
`haproxy.wretr`	integer
`haproxy.wrew`	integer
`kernel.boot_time`	integer
`kernel.context_switches`	integer
`kernel.entropy_avail`	integer
`kernel.interrupts`	integer
`kernel.processes_forked`	integer
`mem.active`	integer
`mem.available`	integer
`mem.available_percent`	float
`mem.buffered`	integer
`mem.cached`	integer
`mem.commit_limit`	integer
`mem.committed_as`	integer
`mem.dirty`	integer
`mem.free`	integer
`mem.high_free`	integer
`mem.high_total`	integer
`mem.huge_page_size`	integer
`mem.huge_pages_free`	integer
`mem.huge_pages_total`	integer
`mem.inactive`	integer
`mem.low_free`	integer
`mem.low_total`	integer
`mem.mapped`	integer
`mem.page_tables`	integer
`mem.shared`	integer
`mem.slab`	integer
`mem.swap_cached`	integer
`mem.swap_free`	integer
`mem.swap_total`	integer
`mem.total`	integer
`mem.used`	integer
`mem.used_percent`	float
`mem.vmalloc_chunk`	integer
`mem.vmalloc_total`	integer
`mem.vmalloc_used`	integer
`mem.wired`	integer
`mem.write_back`	integer
`mem.write_back_tmp`	integer
`net.bytes_recv`	integer
`net.bytes_sent`	integer
`net.drop_in`	integer
`net.drop_out`	integer
`net.err_in`	integer
`net.err_out`	integer
`net.icmp_inaddrmaskreps`	integer
`net.icmp_inaddrmasks`	integer
`net.icmp_incsumerrors`	integer
`net.icmp_indestunreachs`	integer
`net.icmp_inechoreps`	integer
`net.icmp_inechos`	integer
`net.icmp_inerrors`	integer
`net.icmp_inmsgs`	integer
`net.icmp_inparmprobs`	integer
`net.icmp_inredirects`	integer
`net.icmp_insrcquenchs`	integer
`net.icmp_intimeexcds`	integer
`net.icmp_intimestampreps`	integer
`net.icmp_intimestamps`	integer
`net.icmp_outaddrmaskreps`	integer
`net.icmp_outaddrmasks`	integer
`net.icmp_outdestunreachs`	integer
`net.icmp_outechoreps`	integer
`net.icmp_outechos`	integer
`net.icmp_outerrors`	integer
`net.icmp_outmsgs`	integer
`net.icmp_outparmprobs`	integer
`net.icmp_outredirects`	integer
`net.icmp_outsrcquenchs`	integer
`net.icmp_outtimeexcds`	integer
`net.icmp_outtimestampreps`	integer
`net.icmp_outtimestamps`	integer
`net.icmpmsg_intype0`	integer
`net.icmpmsg_intype11`	integer
`net.icmpmsg_intype3`	integer
`net.icmpmsg_intype4`	integer
`net.icmpmsg_intype5`	integer
`net.icmpmsg_intype8`	integer
`net.icmpmsg_outtype0`	integer
`net.icmpmsg_outtype3`	integer
`net.icmpmsg_outtype8`	integer
`net.ip_defaultttl`	integer
`net.ip_forwarding`	integer
`net.ip_forwdatagrams`	integer
`net.ip_fragcreates`	integer
`net.ip_fragfails`	integer
`net.ip_fragoks`	integer
`net.ip_inaddrerrors`	integer
`net.ip_indelivers`	integer
`net.ip_indiscards`	integer
`net.ip_inhdrerrors`	integer
`net.ip_inreceives`	integer
`net.ip_inunknownprotos`	integer
`net.ip_outdiscards`	integer
`net.ip_outnoroutes`	integer
`net.ip_outrequests`	integer
`net.ip_reasmfails`	integer
`net.ip_reasmoks`	integer
`net.ip_reasmreqds`	integer
`net.ip_reasmtimeout`	integer
`net.packets_recv`	integer
`net.packets_sent`	integer
`net.tcp_activeopens`	integer
`net.tcp_attemptfails`	integer
`net.tcp_currestab`	integer
`net.tcp_estabresets`	integer
`net.tcp_incsumerrors`	integer
`net.tcp_inerrs`	integer
`net.tcp_insegs`	integer
`net.tcp_maxconn`	integer
`net.tcp_outrsts`	integer
`net.tcp_outsegs`	integer
`net.tcp_passiveopens`	integer
`net.tcp_retranssegs`	integer
`net.tcp_rtoalgorithm`	integer
`net.tcp_rtomax`	integer
`net.tcp_rtomin`	integer
`net.udp_ignoredmulti`	integer
`net.udp_incsumerrors`	integer
`net.udp_indatagrams`	integer
`net.udp_inerrors`	integer
`net.udp_noports`	integer
`net.udp_outdatagrams`	integer
`net.udp_rcvbuferrors`	integer
`net.udp_sndbuferrors`	integer
`net.udplite_ignoredmulti`	integer
`net.udplite_incsumerrors`	integer
`net.udplite_indatagrams`	integer
`net.udplite_inerrors`	integer
`net.udplite_noports`	integer
`net.udplite_outdatagrams`	integer
`net.udplite_rcvbuferrors`	integer
`net.udplite_sndbuferrors`	integer
`system.load1`	float
`system.load15`	float
`system.load5`	float
`system.n_cpus`	integer
`system.n_users`	integer
`system.uptime`	integer
`system.uptime_format`	string

Ready to take a closer look at Bonsai?

Find out if Bonsai is a good fit for you in just 15 minutes.

Schedule a consultation
